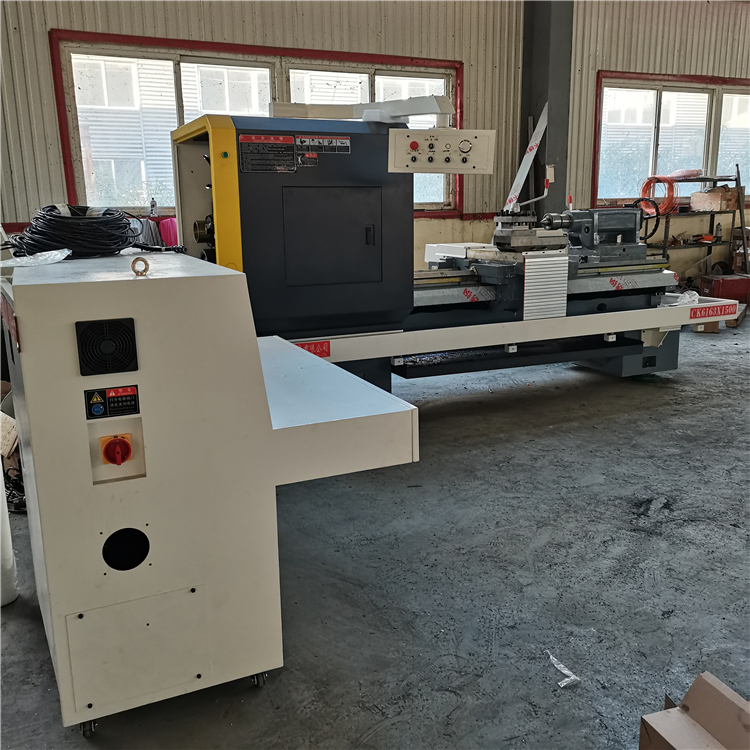

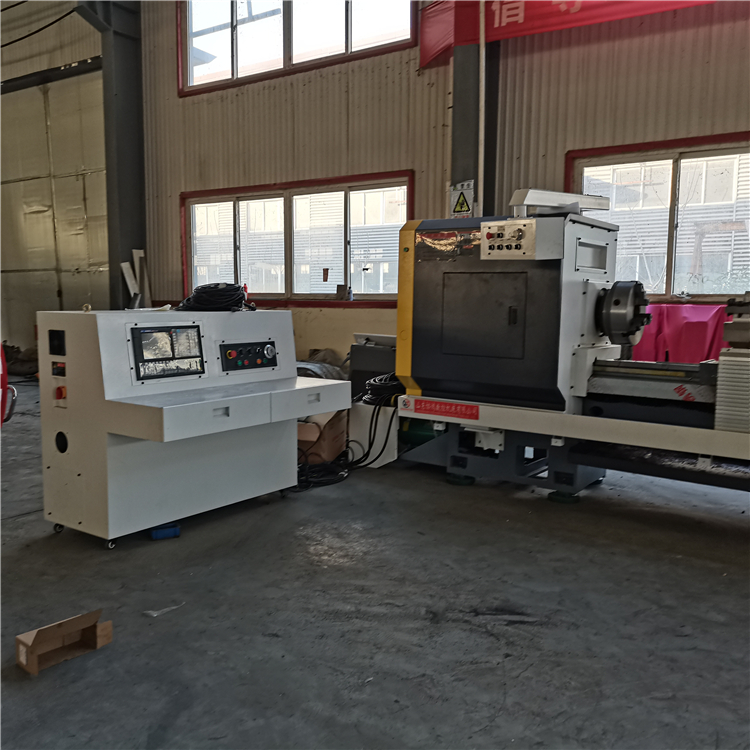

Model CK6163

Bed frame rotation diameter: Φ630 mm

Trolley turning diameter: 350mm

Cutting Diameter mm Φ630

Processing Length: 1500mm

Travel of X/Z axis mm 300/1500

X/Z axis displacement unit mm 0.001

Bore diameter: 105mm (Φ105)

Main shaft gear ratio  Infinite in gearbox

Main shaft maximum speed rpm: 30-84/53-150/125-350/300-835

Main Motor Power (Variable Frequency) kW 11

VFD 11 kW

X/Z axis N.m 7.7/10

X/Z Axis Rapid Traverse Speed m/min 6/8

Tool Holder Type 4-Station Electric Knife Holder

Tooling Rod Size: 32*32 mm

Repeating positioning accuracy of tool holder: mm ≤ 0.004

Tailstock sleeve diameter mm Φ75

Tailstock sleeve travel mm 200

Tailstock Tip Bore, Morse Taper 6#

Machine Tool Net Weight: 3,500 kg

Machine Tool Dimensions (Length x Width x Height) mm 3350*1600*1900

Other Power/Current Requirement: 15kW/20A
