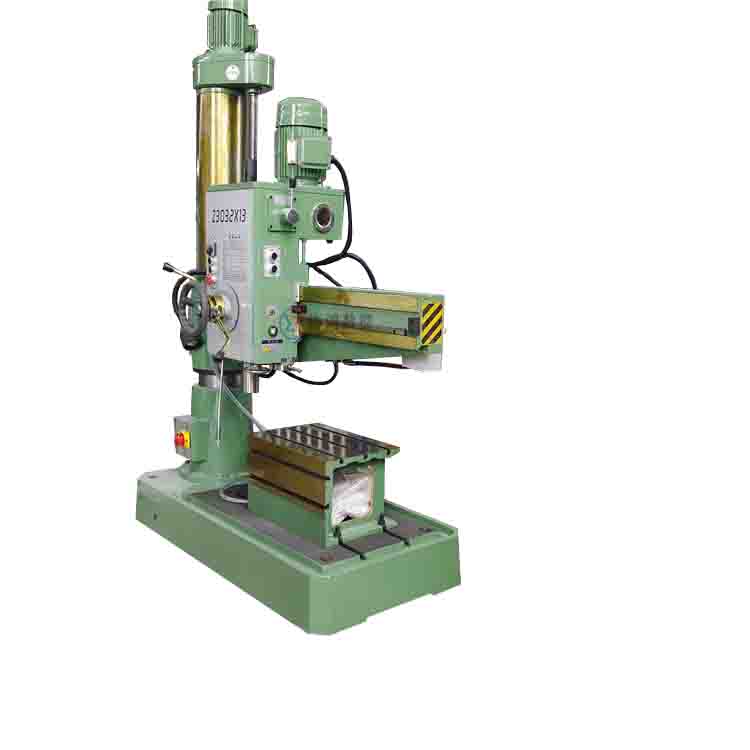

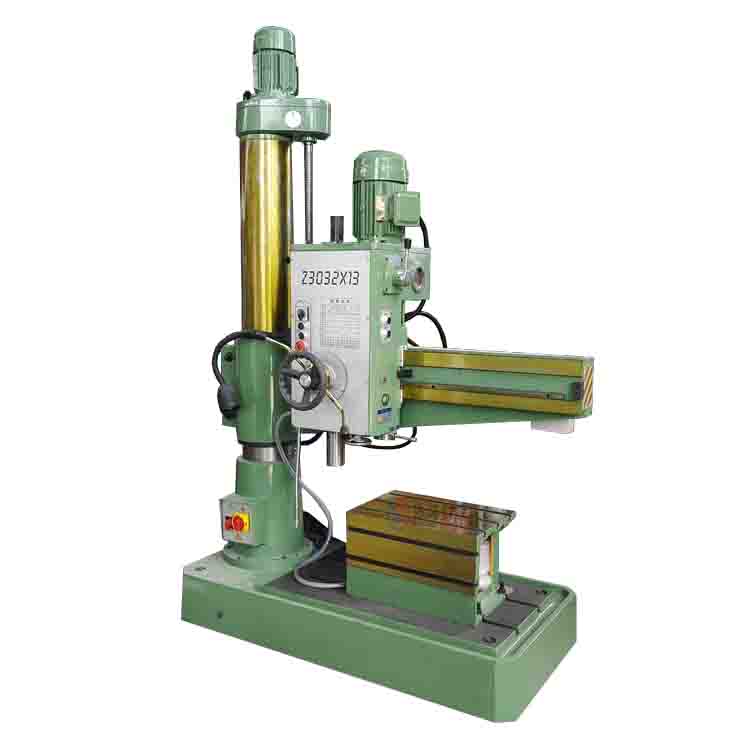

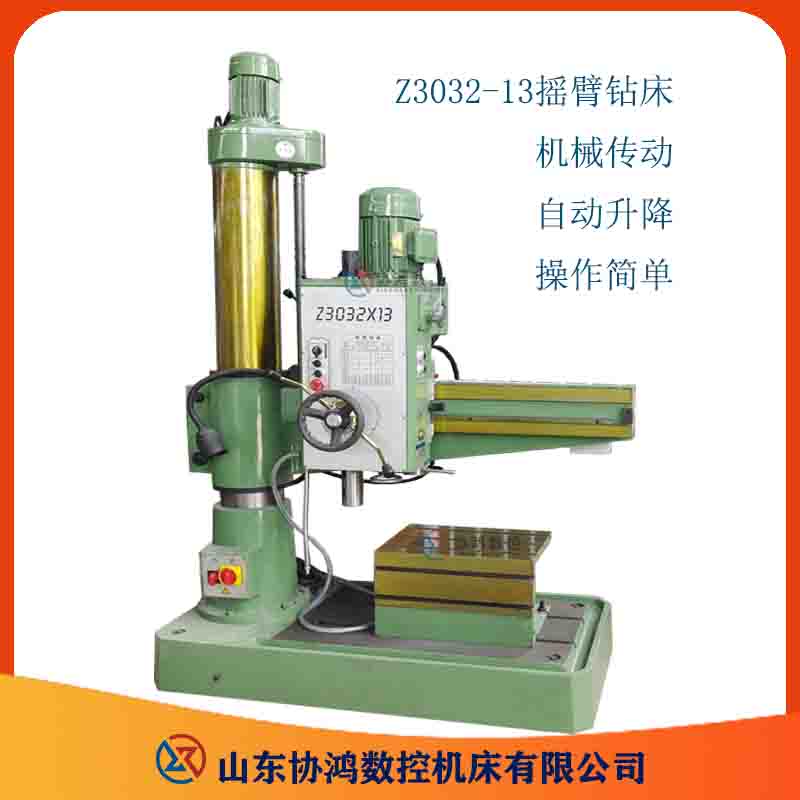

Model: Z3032X13 Units: [No Chinese Content]

Boring Diameter: 32mm

Centerline to column flange distance: 300-1000 mm

Main shaft box horizontal travel distance mm 600

Bearing end face to base working surface distance: 260-1000 mm

Spindle Stroke mm 280

Main Spindle Taper (Morse) Morse No. 4#

Spindle Speed Range: rpm 34, 75, 95, 130, 167, 220, 280, 380, 430, 660, 800, 1220

Step 6 spindle speed grade

Spindle Feed Rate Range mm/r 0.1 0.16 0.25

Spindle Feed Rate Steps: Step 3

Main shaft allows driving force N 6500

Swivel Angle of Boom: 180°

Main shaft motor power: 2.2 kW

Overall Weight: 1400 kg

Dimensions: 1900×760×2100 mm
