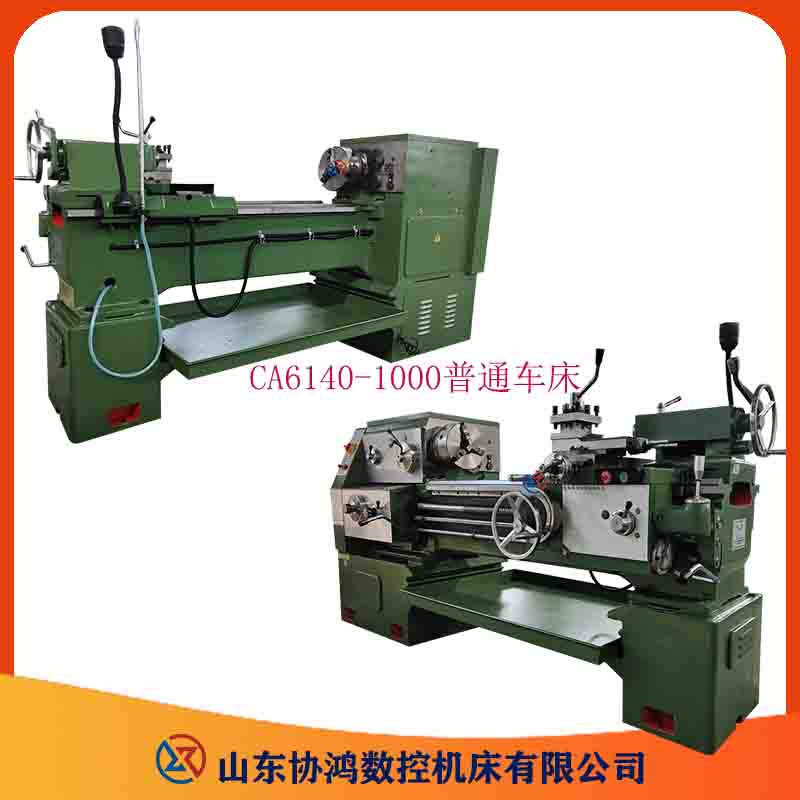

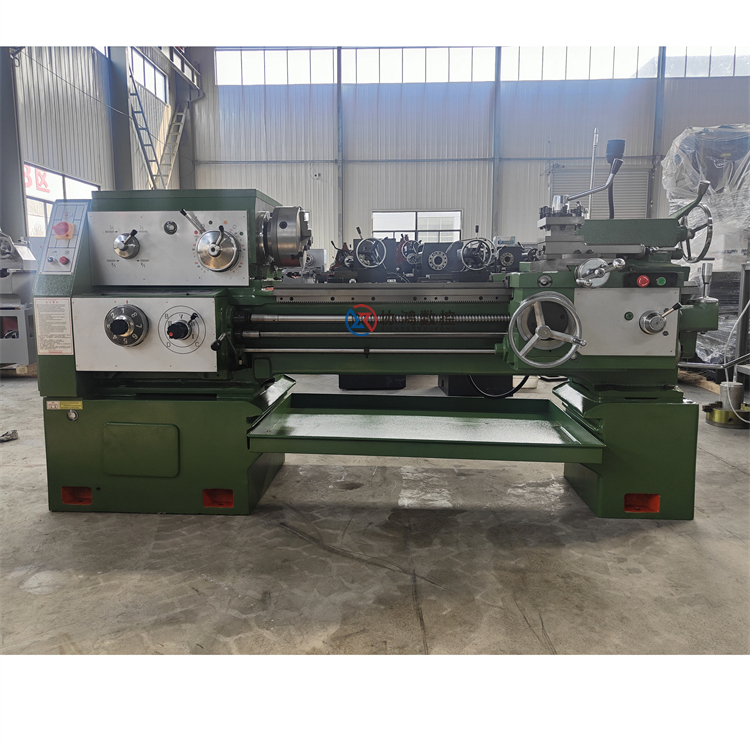

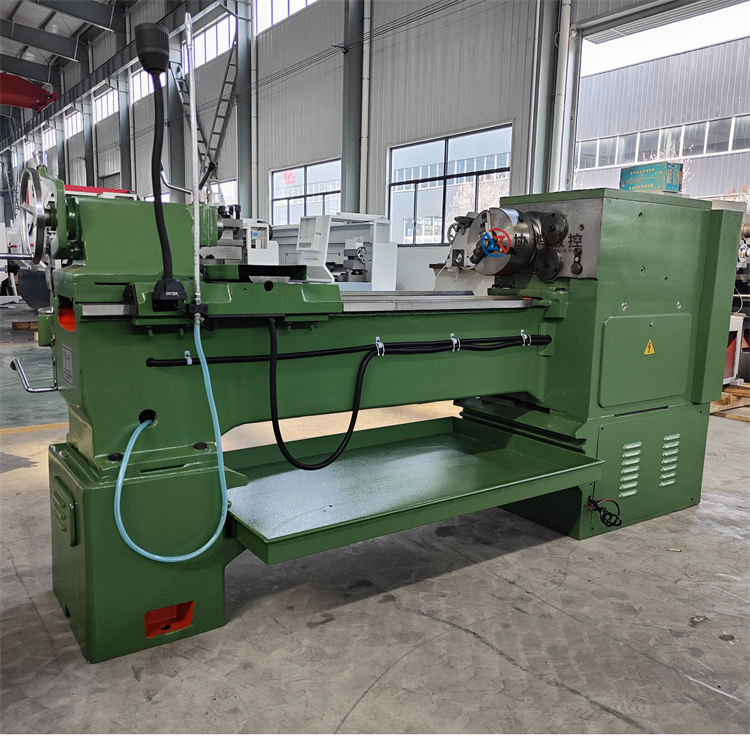

Technical Specifications Units C6140

Swivel Diameter on Bed: 400mm

Swivel Diameter on Horizontal Slider: 230mm

Part Length: 1000mm

Bore Diameter: mm 52

Main shaft bore taper MT6

Spindle Speed Range: 40-1400 rpm

Main shaft speed grades: 9

Medium drawer stroke mm 200

Small knife holder stroke: 95mm

Tool Size: 20*20 mm

Feed Rate Range mm/r 0.0832-4.6569

Feed Rate Range mm/r 0.048-2.688

Metric Thread Types: 19

Metric Thread Range: mm 0.25-14

British Standard Thread Types - 28

British Standard Thread Range 2-40

Number of Modulated Threads: 17

Modular thread range 0.25-3.5

Tailstock sleeve diameter: mm 65

Tailstock Sleeve Tapered Hole MT4

Tailstock sleeve stroke mm 130

Main Motor Power: 4 kW

Cooling Motor Power: 0.09 kW

Machine Tool Weight: 1320 kg

Dimensions (Length x Width x Height): 2400*1140*1550
