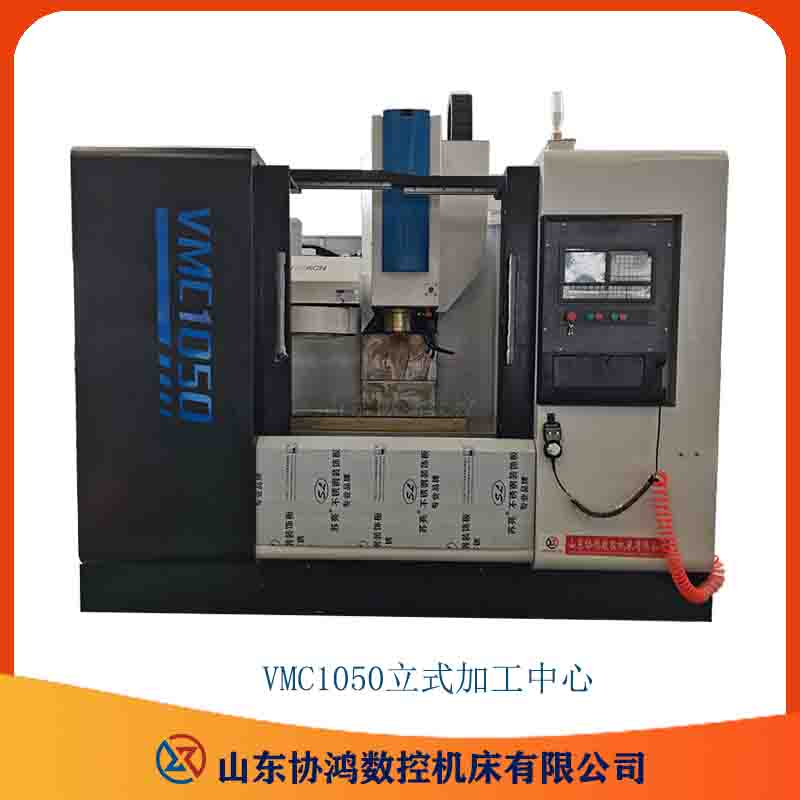

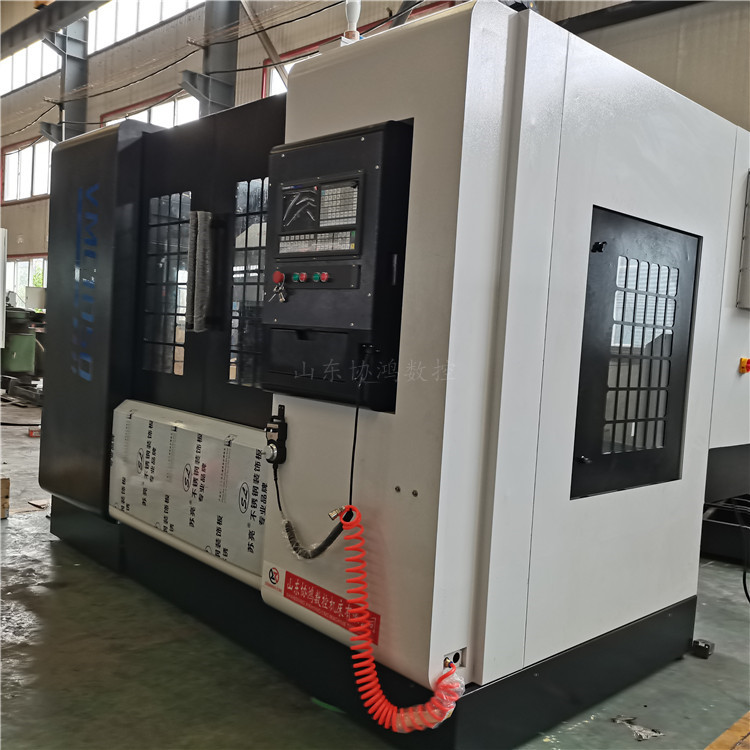

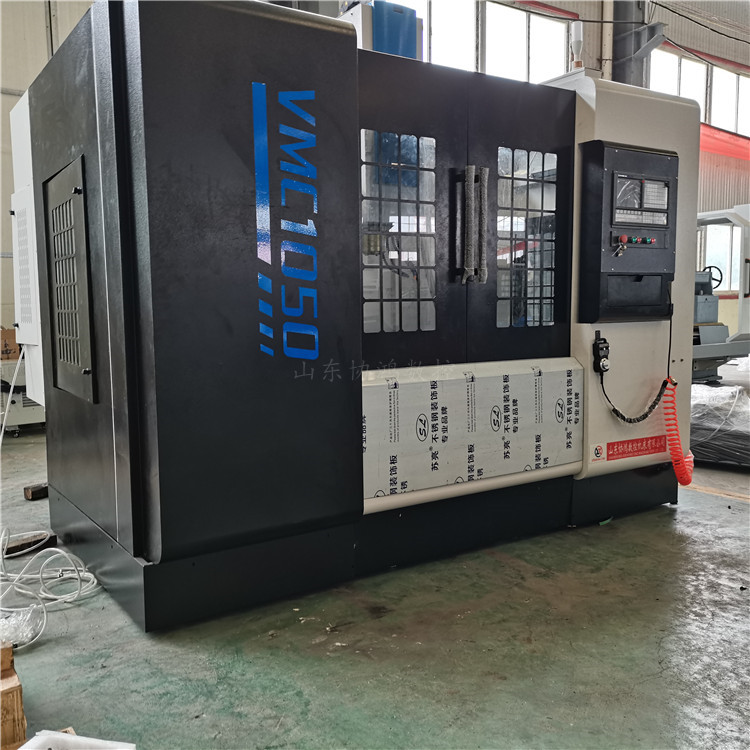

Units VMC1050

Workbench Dimensions: mm 1000x500

X-axis travel mm 1000

Y-axis stroke mm 500

Z-axis travel mm 550

Workbench Load Capacity: 800 kg

T-slot (quantity-width-gap) 5-18x100

Spindle Speed: 8000 rpm

Spindle Taper mm BT40

Main Motor Power: 7.5 kW

X/Y/Z axis rapid traverse speed m/min 24/24/12

Cutting Feed Rate mm/min 1-8000

Track Type  Single Ridge Flat Track

Distance from spindle center to column surface: 600mm

Center shaft end to table surface distance mm 130-680

Positioning Accuracy: ±0.0075 mm

Repeatability accuracy: mm ±0.005

Tool Magazine Arm 24

Blade Diameter: mm φ78 (Adjacent) / φ120 (Apart)

Cutting Tool Weight: 8 kg

Machine Tool Weight: 6,700 kg

Dimensions: 3200 mmx2400x2800
