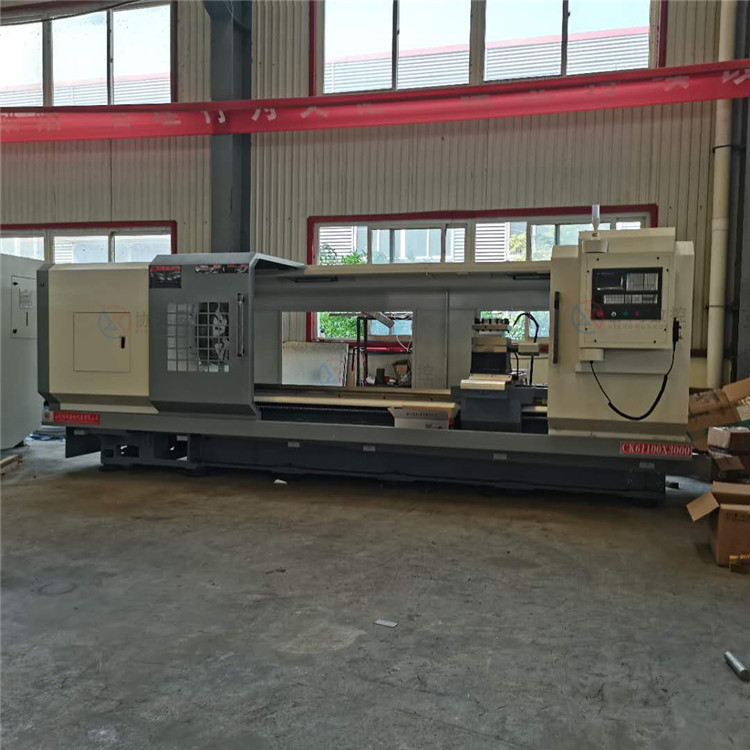

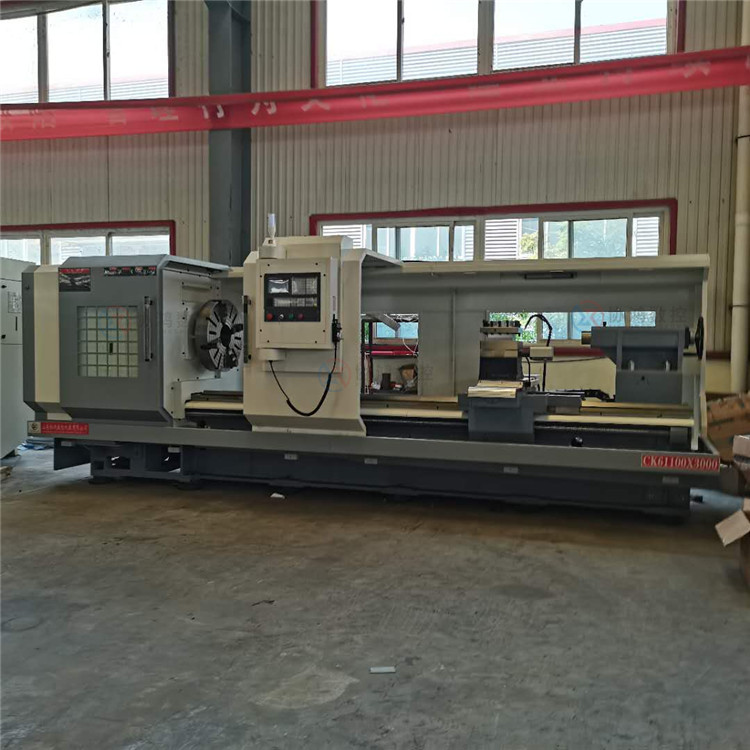

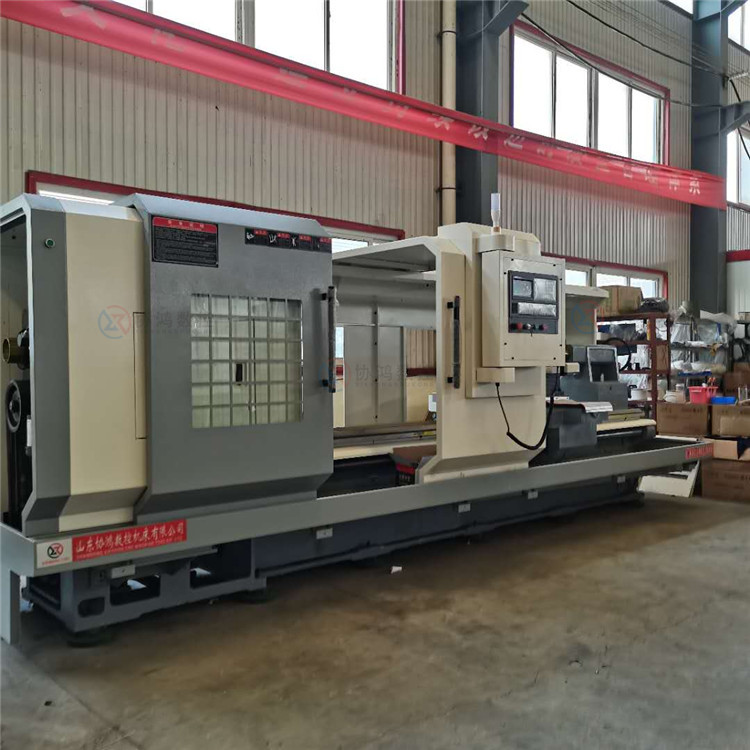

Project Content Unit CK61100
Processing Range - Turning Diameter of Bed: Φ1000 mm
Board turn diameter Φ630
Processing Length: 3000mm
Processed Diameter: 1000mm Φ
Bar Diameter mm Φ630
Collet 630 three-jaw or 800 four-jaw
Main Spindle Head Type D11
Bushing bore diameter mm Φ105
Bore taper in spindle 1:20
Spindle Speed Grades - Manual 4-speed/Hydraulic 4-speed
Spindle Speed Range: 30-84/53-150/125-350/300-835 rpm
Travel of X/Z axis mm 350/3000
X/Z Axis Lead Screw Diameter × Pitch mm φ3.208/φ5.010
X/Z Rapid Traverse Speed m/min 4/6
Rack Type - Electric Vertical
Workstations: 4
Tooling Specifications: Turning/Tapping Diameter mm 32/40
Bushing Diameter/Stroke mm Φ100/250
Tapered bore in sleeve, MT6
Sleeve Drive Type - Manual
Tailstock body movement type Manual
Spindle Motor Power: 11 Kw
Main shaft motor torque: 48 NM
X/Z Motor Power Kw 1.5/2.3
Torque of X/Z Motor: 10/15 NM
Cooling pump motor power: 125 W
Power Capacity KVA 15
Bed saddle layout: Flat bed body
Guide Rail Type - Hard Rail (HRC50+)
Machine Tool Weight: 6,500 kg
Machine Tool External Dimensions: Length × Width × Height mm 5400/1900/2000
