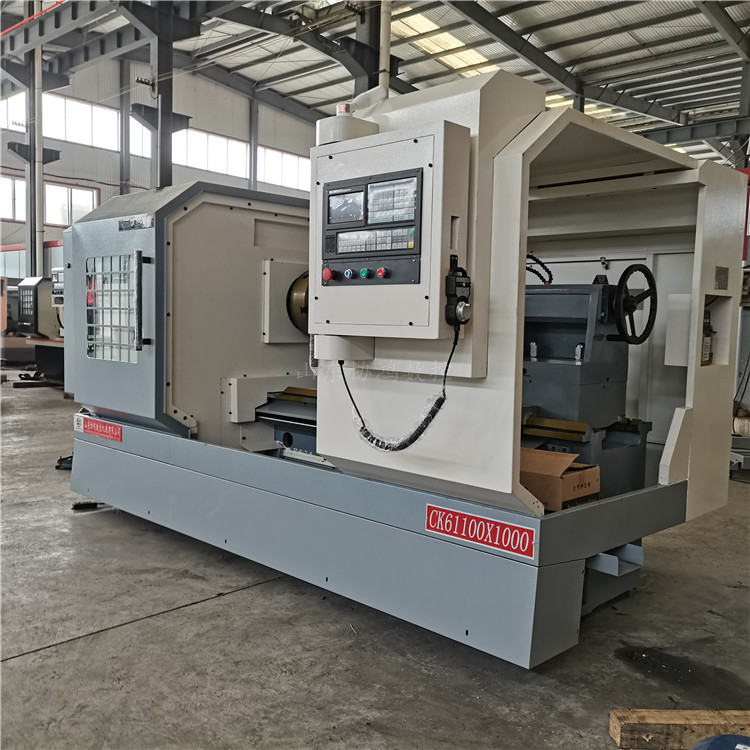

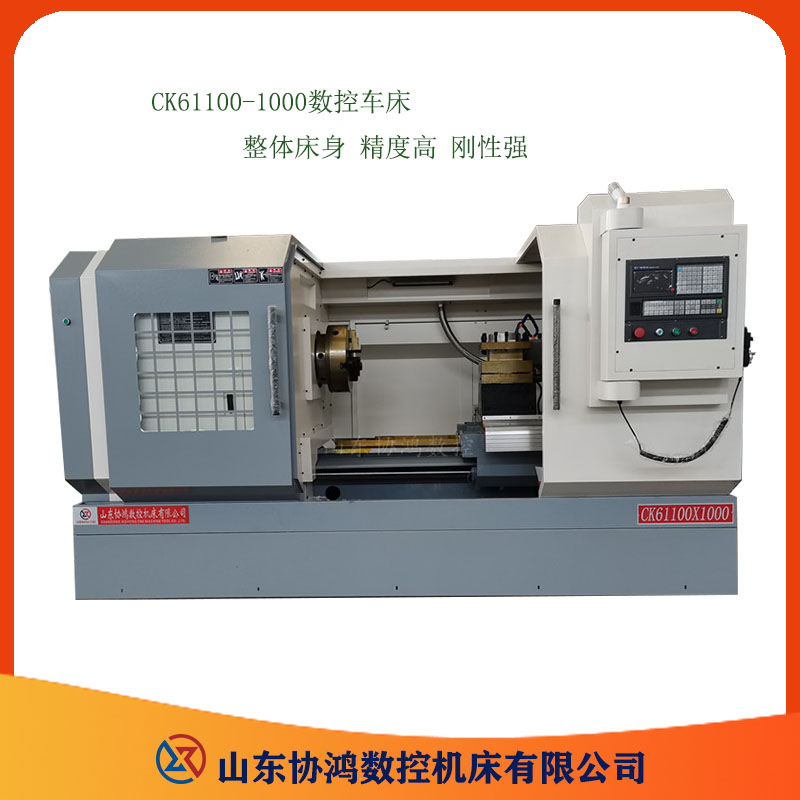

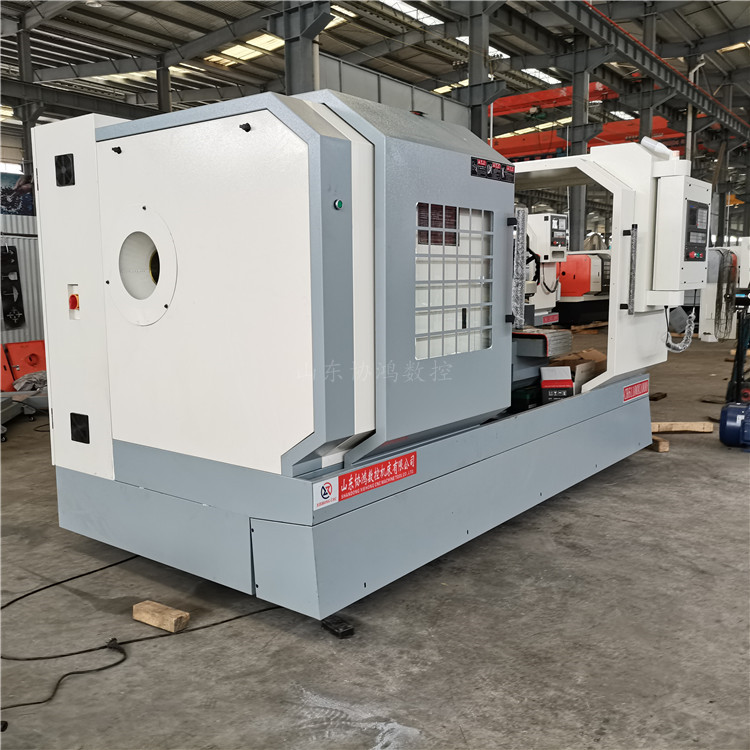

Key Technical Parameters  Units CK61100

Bed frame rotation diameter: 1000mm

Swivel Diameter on Horizontal Slab: mm 610

Part Length: 1000 mm

Bed Frame Rail Width: 755mm

Bed Frame Load Range: T 6

Bore Diameter Range mm 105

Bore Diameter Taper Φ140/MT6

Spindle Nose Type A2-15

Main shaft speed steps: 4-step variable frequency VF

Spindle Speed Range: 4-300 rpm

Chuck Specification mm Φ1000 Manual Four-Jaw Chuck

Tool Holder Type 4-Station Electric Tool Holder

Tool Size: mm 40x40

X-axis travel 520 mm

Z-axis travel mm 850

X-axis rapid traverse speed  mm/min  4000

Z-axis rapid traverse speed mm/min 6000

Tailstock sleeve diameter: Φ160 mm

Tailstock Sleeve Taper - MT6

Tailing sleeve stroke mm 300

Spindle Motor  15 kW

Cooling Pump Motor, kW 0.125
