1. This machine tool is a high-speed, high-precision, and highly reliable CNC machine. Bed base, bed body,
The headboard cabinets and other main components are cast from high-strength materials, ensuring the stability of machine tools for long-term use.
2. The machine tool has high positioning accuracy, smooth chip removal, and is suitable for high-speed, high-precision machining.
3. High-speed, high-precision, and high-rigidity spindle, variable-speed spindle motor, capable of achieving higher spindle speeds.
The spindle unit is assembled within a temperature-controlled room, followed by a continuous 72-hour temperature-run-in period. After installation, it undergoes a further 72-hour trial operation.
Ensure reliable high-speed, high-precision performance.
4. Select an electric knife holder.
5. Feeds in the X and Z directions utilize precision ball screws.
The servo motor is directly connected to the screw through a high-torque, low-inertia imported elastic coupling, and utilizes an advanced centralized automatic lubrication system.
Timed and precise automatic intermittent lubrication, ensuring stable and reliable operation.
6. The machine tool protection features a full-coverage design, offering enhanced ergonomics and unique aesthetics, reliable waterproof and chip-resistant protection, and easy maintenance.

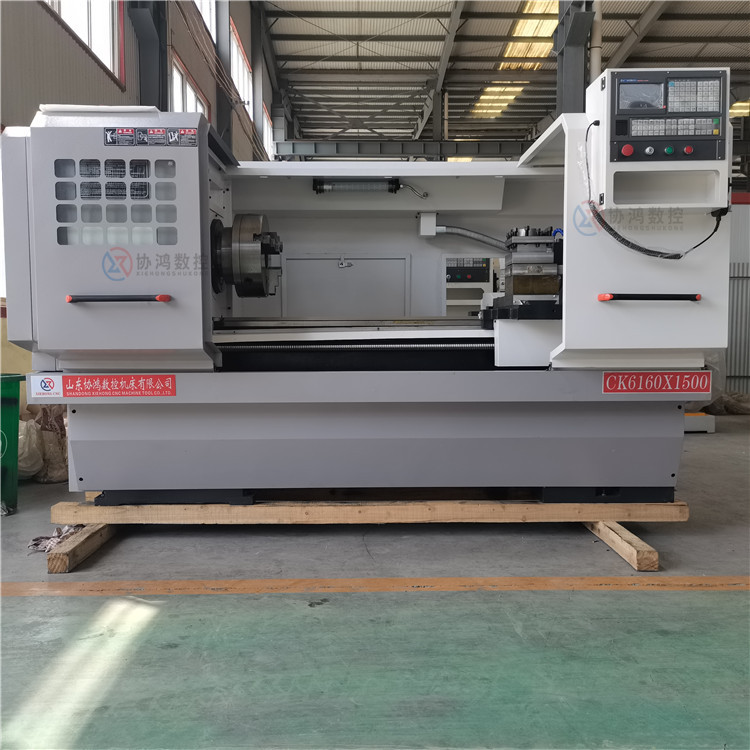

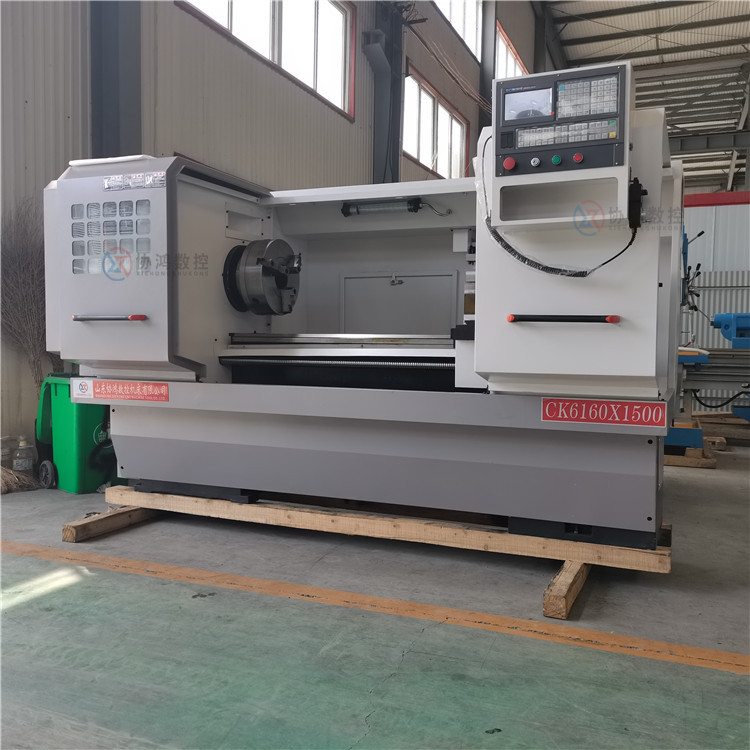

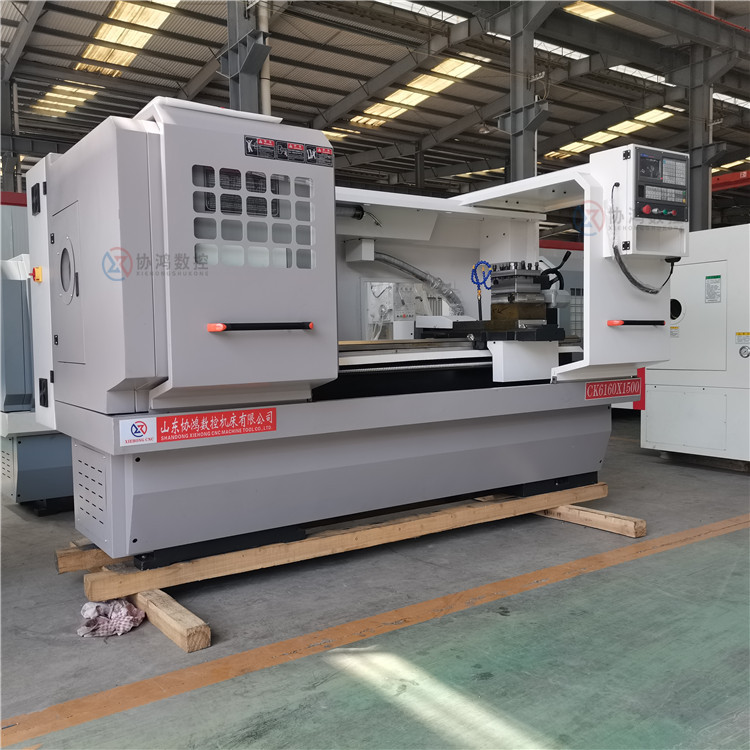

Model CK6160
Bed frame rotation diameter: Φ600 mm
Skid Turntable Diameter mm Φ350
Cutting Diameter mm Φ600
Processed Length: 850mm
Travel of X/Z axis mm 300/1500
X/Z Axis Displacement Unit mm 0.001
Bore Diameter: 82 mm (Φ 82)
Spindle Level Number: Infinite
Main shaft maximum speed: 20-1000 rpm
Main Motor Power (Variable Frequency) kW 11
VFD 11 kW
X/Y Axis N.m 5/7.5
X/Z Axis Rapid Traverse Speed m/min 6/8
4-Station Electric Knife Holder (Wenchang)
Toolholder Size: 25mm x 25mm
Repeat positioning accuracy of knife holder: mm ≤ 0.004
Tailstock bushing diameter mm Φ75
Tailstock Sleeve Stroke: 200 mm
Tailstock Tip Taper Hole, M5#
Machine Tool Net Weight: 2800 kg
Machine Tool Dimensions (Length x Width x Height) mm 2940*1300*1680
Power Demand (Power/Current) kW/A 15kW/20A
