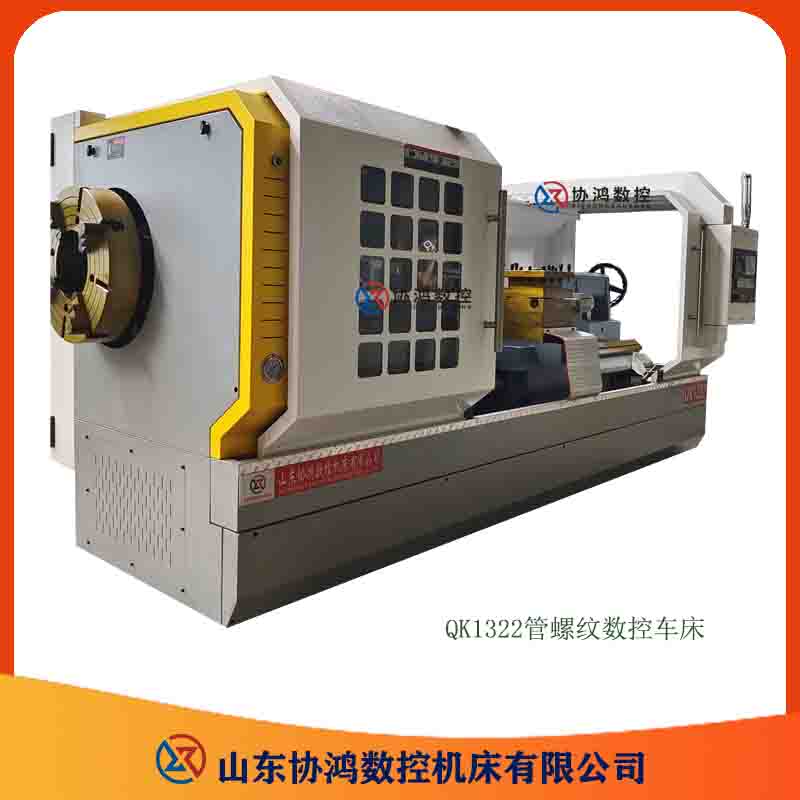

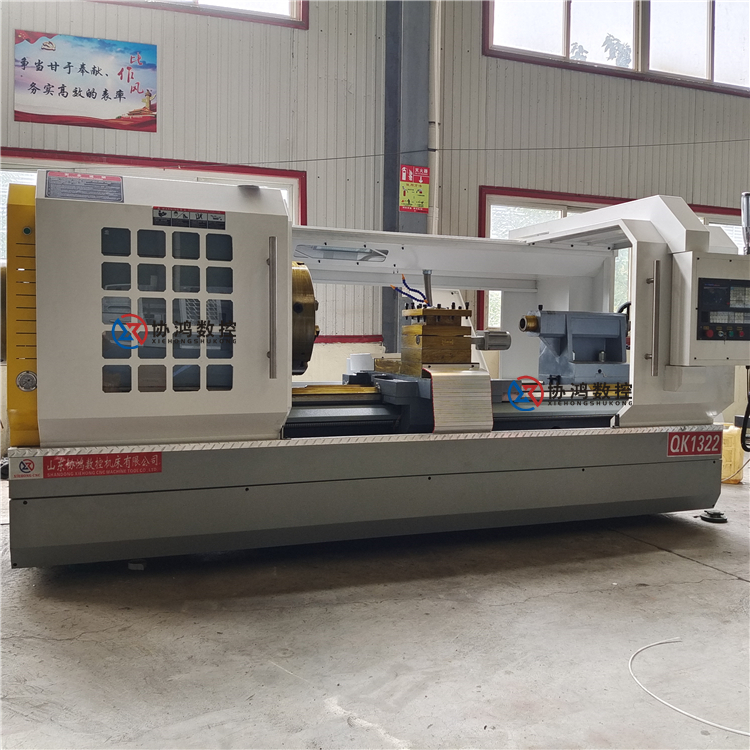

Machine Tool Model: QK1322

Bed frame rotation diameter mm 800

Plate rotation diameter mm: 480

Processing Length: mm 1000/1500/3000

Spindle Drive Type: Variable Frequency Infinite Speed Control

Main shaft speed grades - Infinite

Spindle Speed: 25-1600 rpm

Spindle Head Type C11

Bore end taper - Metric 120, 1:20

Bore Diameter of Main shaft: 220mm

Main Motor Power (KW) 11

X/Z axis positioning accuracy mm 0.025/0.03

Repeatability accuracy of X/Z axis: 0.01/0.015 mm

Workpiece Machining Precision: IT6-IT7

Workpiece Surface Roughness Ra1.6

X quick shift speed mm/min 4000

Z Rapid Traverse Speed mm/min 5000

Tailstock sleeve diameter mm 100

Tailstock sleeve inner hole taper - MT6#

Tailstock sleeve travel mm 250

Turret Type - Electric Vertical 4-Spindle Turret

Ball screw diameter * pitch (mm) X: 32*0.5 Z: 50*1.0

刀架 travel X/Z (mm): 500/1200, 1650, 3100

Machine Tool Dimensions (L×W×H) mm: 3700*1820*1780

Machine Tool Weight: 3,800/4,100/5,400 kg
