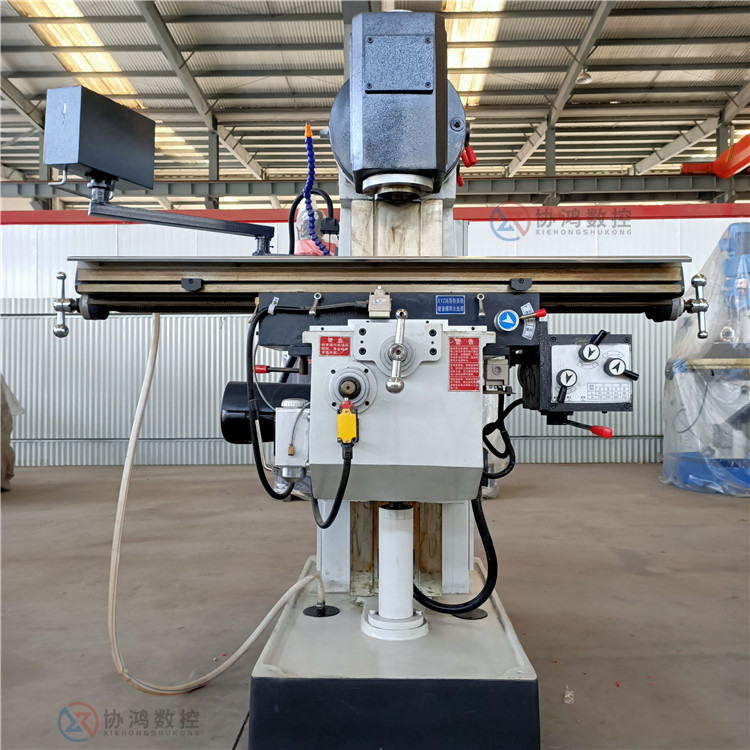

Main Technical Parameters XQ5032

Workbench Top Size: 1500mmx320

Workbench T-slot quantity: 3

Workbench Travel 1000/320/450

Table longitudinal and transverse feed speed (mm/min > 8 grades 15-370 (quick feed))

Distance from vertical guide rail to column (mm): 300

Bearing face to worktable surface distance: 50-450 mm

Main shaft taper 7:24/40

Spindle speed range (steps) (r.p.m.) 12 steps 34-1100

Head rotation angle ±45 degrees

Motor Power: 3/4 KW

Workbench Feeding Motor Power (KW) 0.75

Lifting Motor Power (Kw): 1.1

Cooling Pump Motor Power (w) 40

Machine tool external dimensions: mm 1900x1800X2150

Machine Tool Net Weight (Net Weight) Kg 2200
