Key Performance Characteristics of Machining Machines:
1. The main components, including the base, body, worktable, middle sliding seat, lifting sliding seat, and main spindle box, are all cast from high-strength materials and treated with artificial aging, ensuring the stability of the machine tool for long-term use.
2. The face mill head can be adjusted ±45° in the vertical plane for forward and reverse rotation, expanding the machining range of the machine tool; the spindle bearing is a cone roller bearing, offering strong load-bearing capacity, and the spindle uses energy-efficient braking, providing a large braking torque for quick and reliable stopping.
3. The worktable features manual feed, semi-automatic feed, and rapid feed in the X/Y/Z directions, with feed speeds to meet various processing requirements; rapid feed allows the workpiece to quickly reach the processing position, facilitating fast and convenient processing, thereby reducing non-processing time.
4. The X, Y, and Z guide rail sets are treated with ultra-audio quenching, precision grinding, and scraping, complemented by forced lubrication to enhance precision and extend the service life of the machine tool.
5. The lubrication unit can provide forced lubrication to the longitudinal, transverse, and vertical screw shafts and guides, reducing wear on the machine tool and ensuring smooth operation. Additionally, the cooling system adjusts the nozzle to change the flow rate of the coolant, catering to various processing requirements.

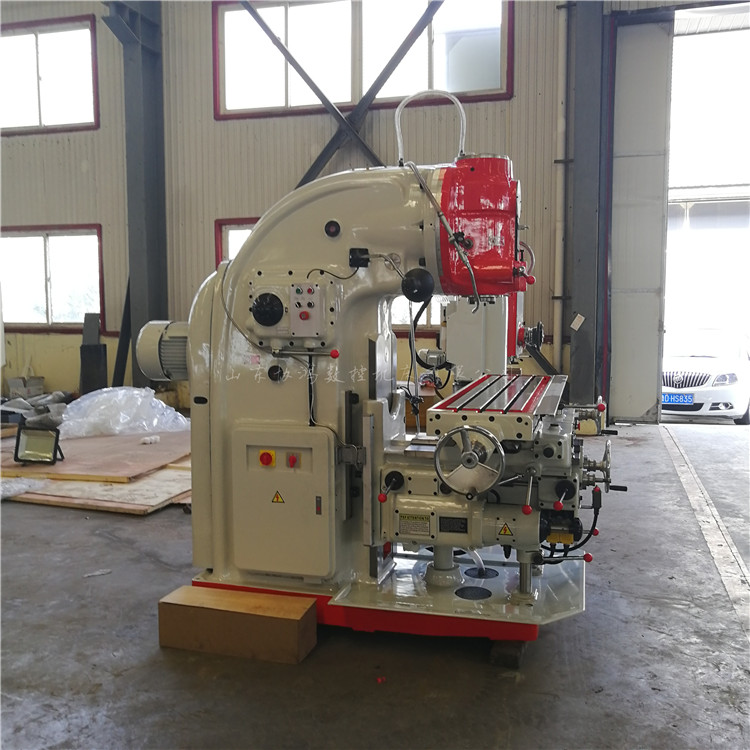

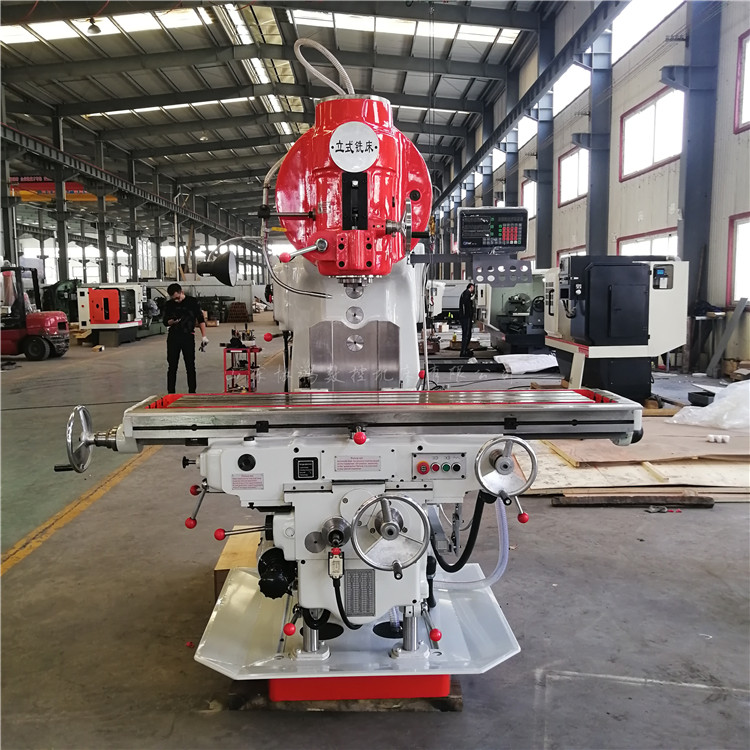

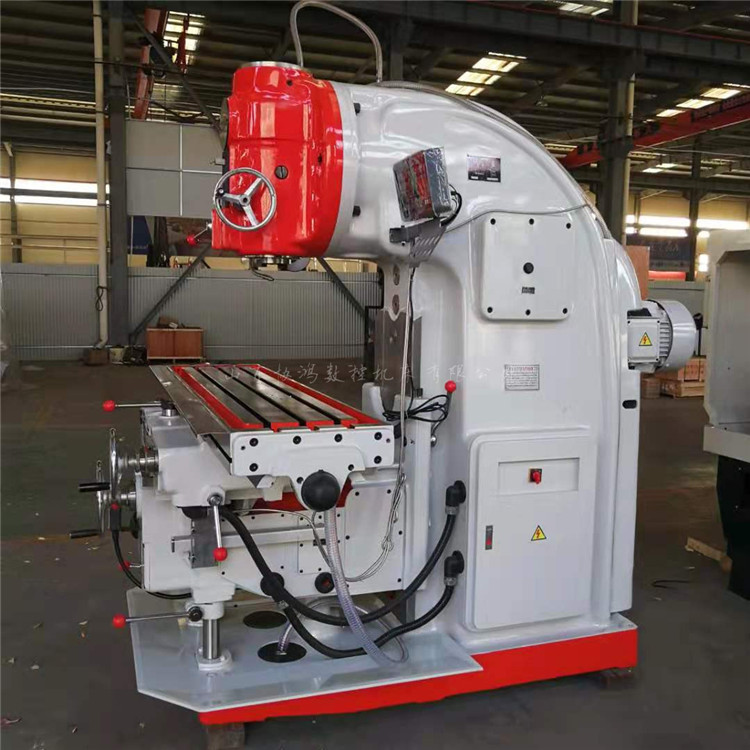

Primary Technical Parameters: X5032/X52K
Desktop work surface size: 320mmx1325
"T" slot count, slot width, slot spacing: 3/18/70
X-axis (Table longitudinal, Manual/Motorized) mm 700/680
Y-axis (slide seat horizontal, manual/motorized) mm 255/240
Z-axis (Lifting Platform Vertical Manual/Motorized) mm 370/350
Rapid Traverse Speed mm/min: 2300/1540/770
Bore Diameter: mm 29
Main shaft bore taper 7:24 ISO50
Spindle Speed Range: 30~1500 rpm
Spindle Speed Grades: 18 Levels
Spindle Axial Travel Distance mm 70
Indexable milling head rotation angle ±45°
Distance from spindle centerline to bed vertical guide rail surface: 350mm
Main shaft motor power: 7.5 kW
Machine tool external dimensions: 2294×1770×1904 mm
Machine Tool Weight (Net Weight) kg 2900/3200
