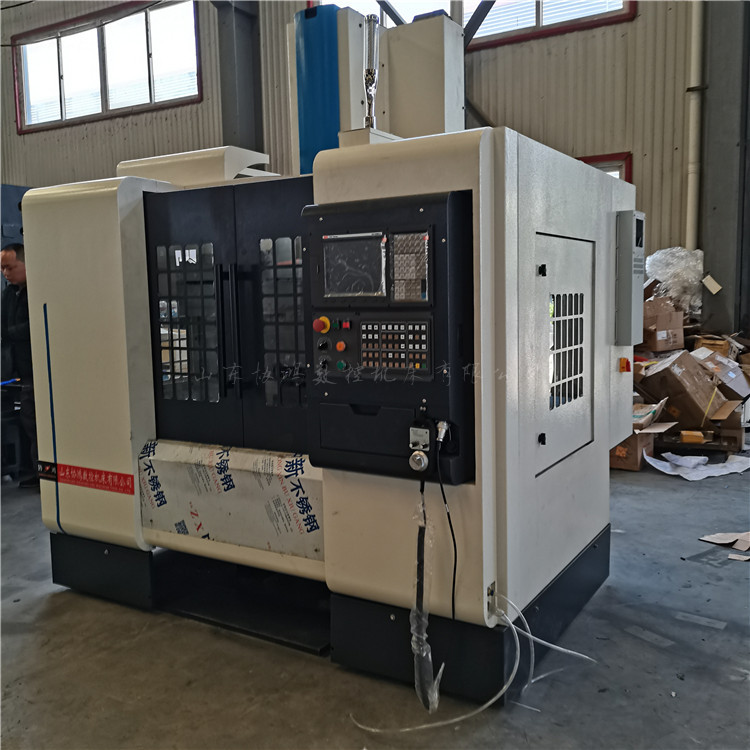

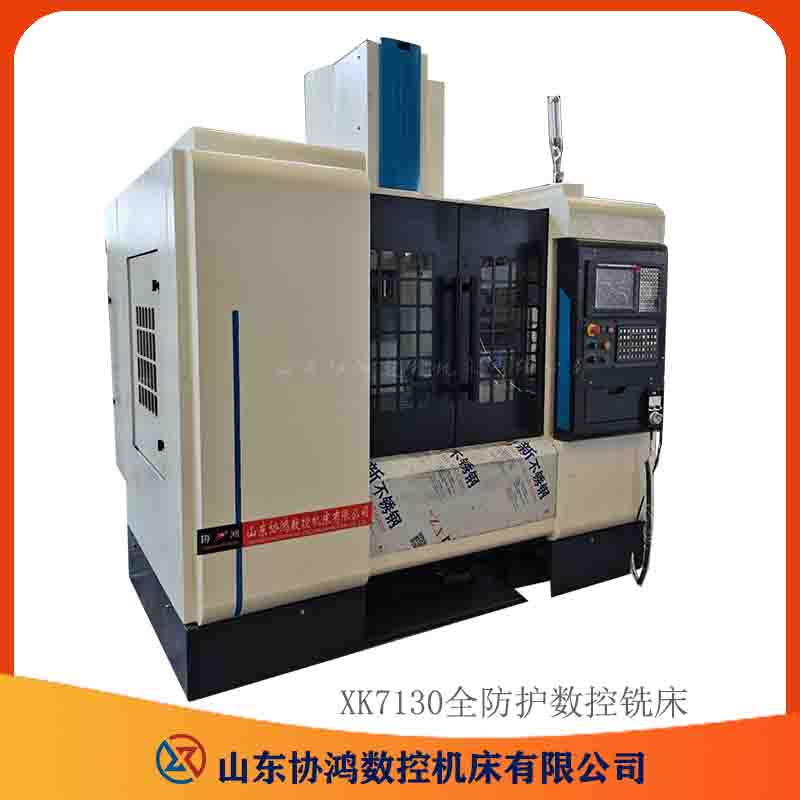

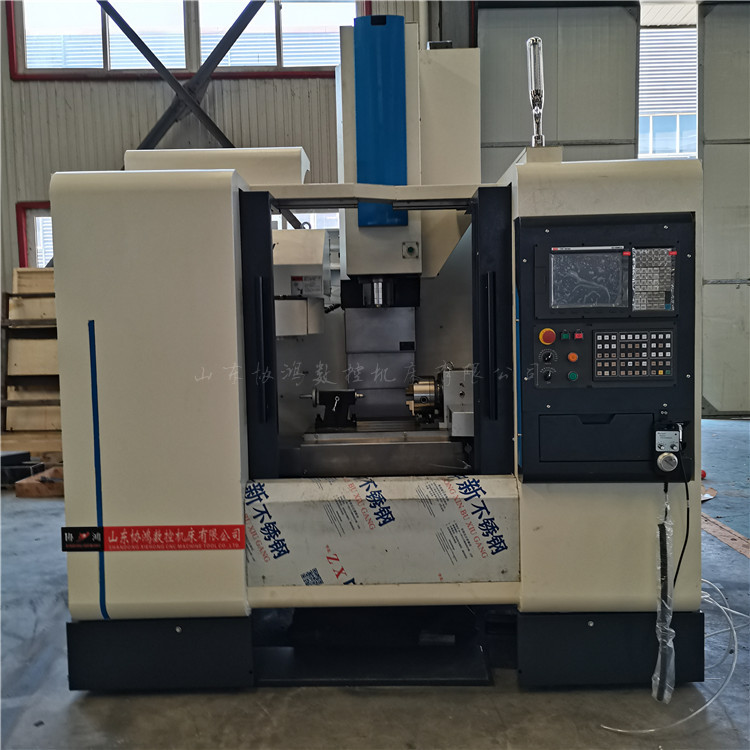

This machine tool is an economical bed-type CNC milling machine with strong load-bearing capacity. The main drive system features a Taiwanese-made turret milling head. This machine can perform various operations such as milling, boring, and drilling. It is an ideal processing equipment for industries including machinery, electronics, instruments, meters, molds, automobiles, motorcycles, and maintenance.

Features:

This machine tool features rigidity, exquisite structure, and attractive design; the vertical milling head uses a Taiwanese tower-type milling head; it is equipped with an electric lubrication pump for forced lubrication; the ball screw transmission, with rectangular guides in the X, Y, and Z axes, has been ground after undergoing audio hardening for durability and aesthetics, offering high precision.

1. Spindle

① Spindle Hole Taper                      BT40-120

② spindle speed range/step: 50-8000 r.p.m/20 steps

③ Auto Feeding Grade of Collets: 3 Grades: 0.04mm/r, 0.08mm/r, 0.15mm/r

④ Distance from spindle face to table face: 130～580mm

⑤ Distance from spindle to column guide face: 360mm

2. Workbench

① Desk Top Size: 800mm x 300mm

② Workbench Travel                  600×360

③ Workbench T-slot  Number/Width/Spacing  3/18/60

3. Rapid Traverse Speed: X, Y, Z: 10m/min

4. Electric Motor

① Main Motor Power: 5.5 kW

② Feeding motors for X, Y, Z axes          1.5KW

5. Machine Tool Weight: 2200 kg

6. Machine Tool External Dimensions: 2220×1850×2350mm
