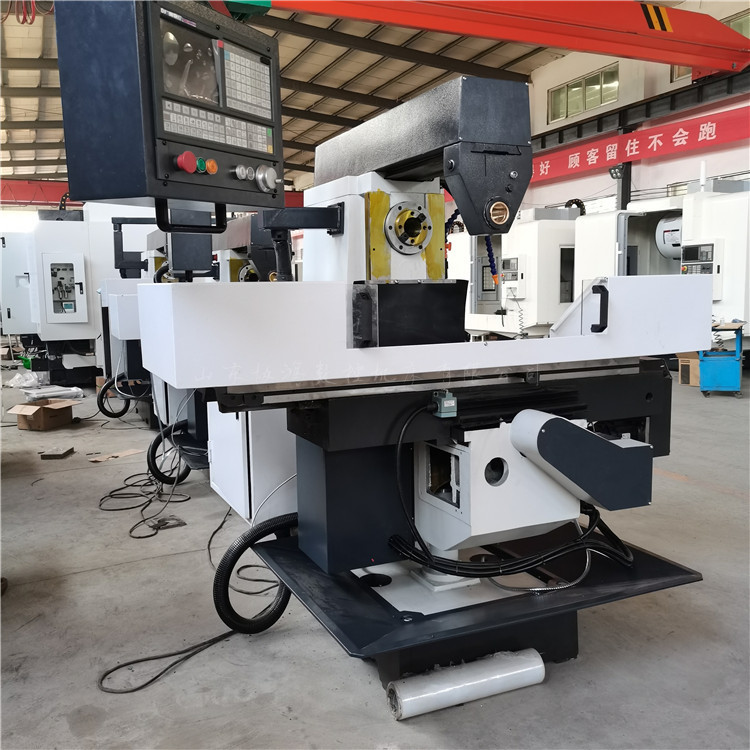

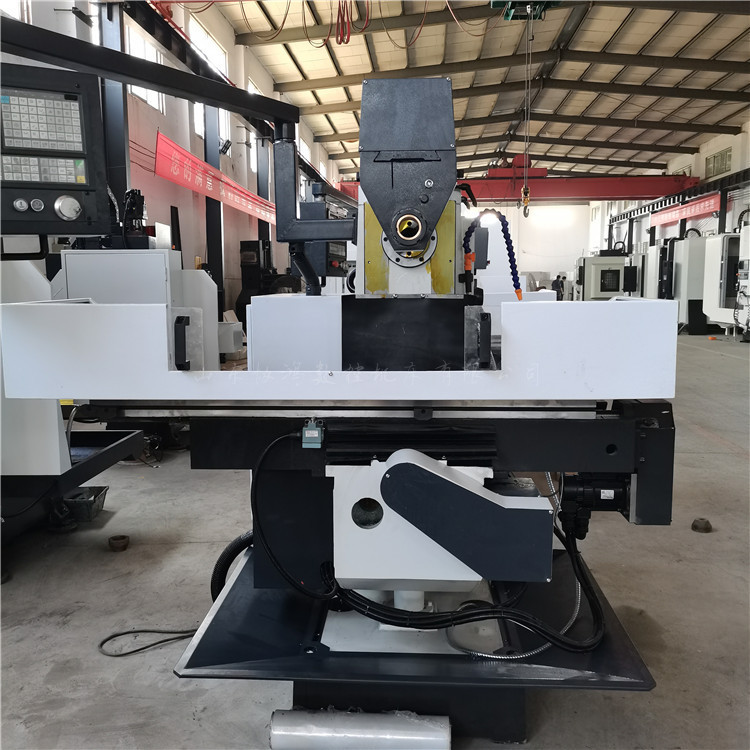

The Xk6036 CNC milling machine is user-friendly and reliable in performance. It can process various shapes such as flat surfaces, inclined surfaces, grooves, etc., using cylindrical cutters, disc cutters, angular cutters, shaped cutters, and face cutters. With the right milling machine accessories, it can also produce special shapes like gears, cams, arc grooves, and helical surfaces. Equipped with multi-functional milling heads, round worktables, indexing heads, and other milling machine accessories, its range of use can be further expanded.

Configurable digital display units based on customer requirements

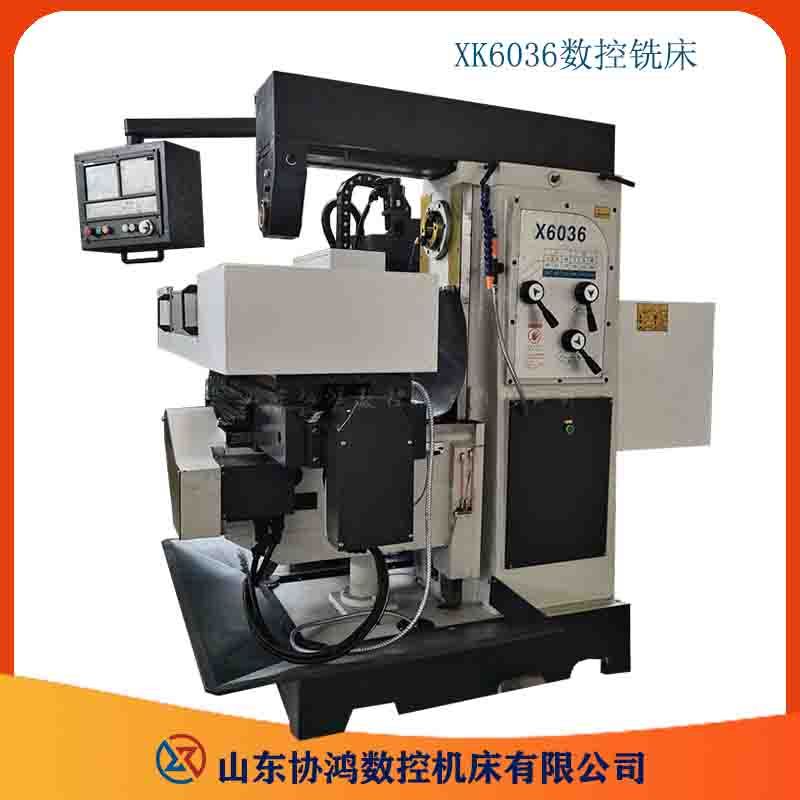

Horizontal Multi-functional CNC Milling Machine

【2】This machine tool's X-axis uses a ball screw, controlled by a PLC for the table's left and right movement, equipped with a 7-inch screen for piece-counting functionality. The Y-axis is manually adjustable for front and rear positioning. The Z-axis features mechanical up and down adjustment.

【3】The three guide rails have been hardened through high-frequency quenching to extend their service life.

Key Technical Parameters (mm): XK6036

Bore Taper (mm) 7; 24 ISO50

Bearing face to table distance (mm) 0~400

Bore center to suspension beam plane distance (mm): 175

Spindle Speed Range (r/min) (12 Steps) 60~1800

Workbench Dimensions (mm): 1500×360/1370x360

Workbench Travel (mm): 600/360

Main Motor Power (kw) 4

Dimensions (mm): 1880 x 1700 x 1700

Machine Tool Weight (kg)  2100
