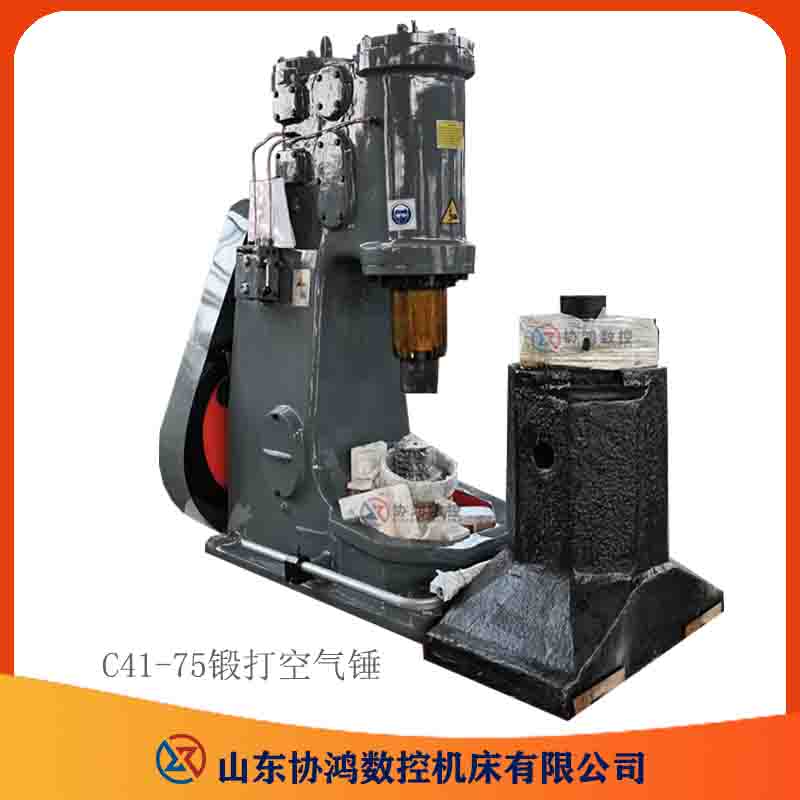

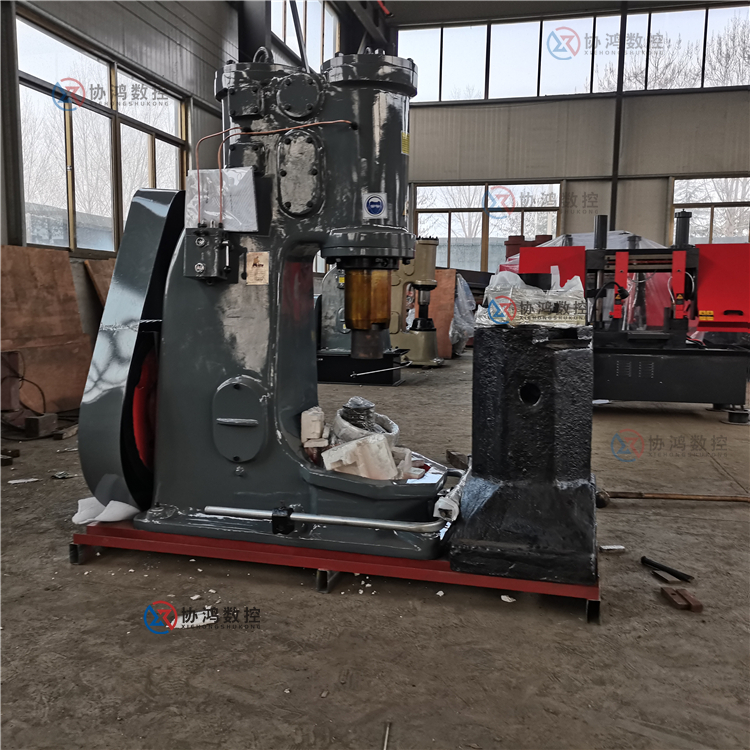

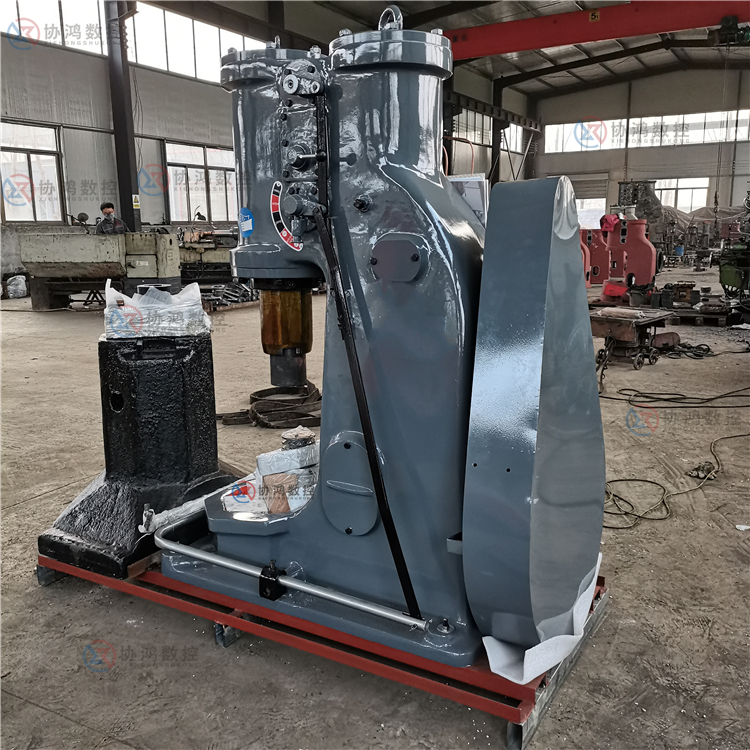

This hammer is designed for small forging operations, capable of extending, thickening, piercing, hot cutting, bending, twisting, and forge welding, and is also suitable for special-shaped anvil use.

Blocks can be shaped through forging, and can also be open-die forged using a die pad.

This hammer is suitable for small-scale manufacturing and repair industries, particularly for individual processing.

Model 65 kg

75 kg, net weight

1.0 kilojoules of impact energy

210 strikes per minute

Operating Height: 300 mm

The centerline of the hammer shaft to the hammer body is 280 millimeters.

Forged square steel section 75x75 mm

Forged round steel diameter 85mm

Motor power: 7.5 kW

Total Weight: 2,500 kg

Machine dimensions: 1440 mmx846x1800
