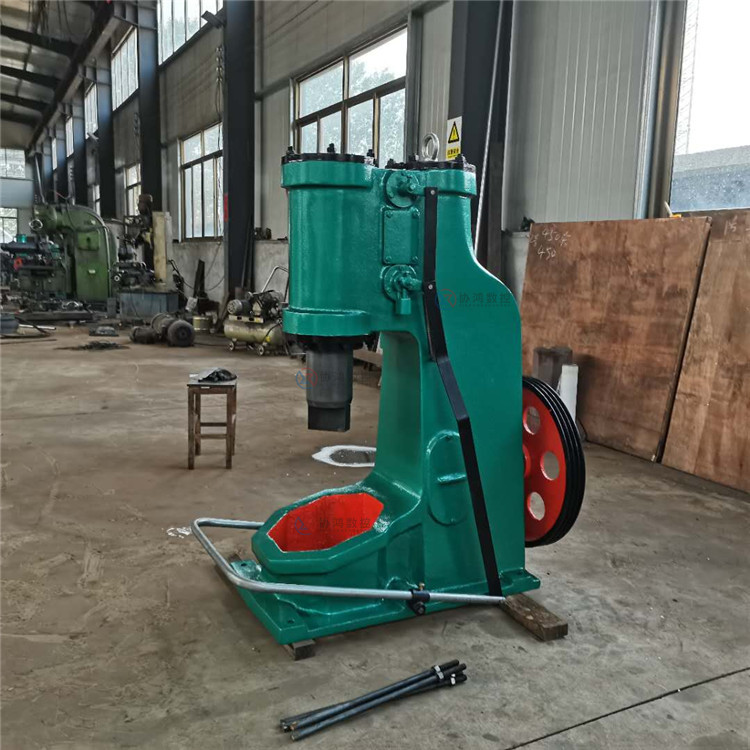

This hammer is a free forging hammer, capable of performing operations such as extension, forging, piercing, hot cutting, bending, twisting, forge welding, and shaping with special die blocks. It can also be used for open-die forging with cushioned dies. This hammer series is suitable for small-scale manufacturing and repair industries and is also applicable for forging various agricultural machinery, mining products, and more. The C41 series pneumatic hammer is a free forging hammer that utilizes air as the medium to transfer work energy. It features a compact structure and easy operation, allowing for a range of light to heavy continuous strikes, including single blows, lifting the hammer (hammer head suspended above), pressing the hammer (hammer head tightly pressing the forging), and no-load operation. The hammer is powered by an electric motor, which drives a crankshaft and connecting rod mechanism to make the compression piston reciprocate. The compressed air is regulated through a valve to propel the hammer rod to perform the required actions. To ensure the normal operation of the machine and extend its service life, users must strictly follow all the instructions in this manual during installation, testing, and daily use. Only then can the machine be used normally and its service life extended.

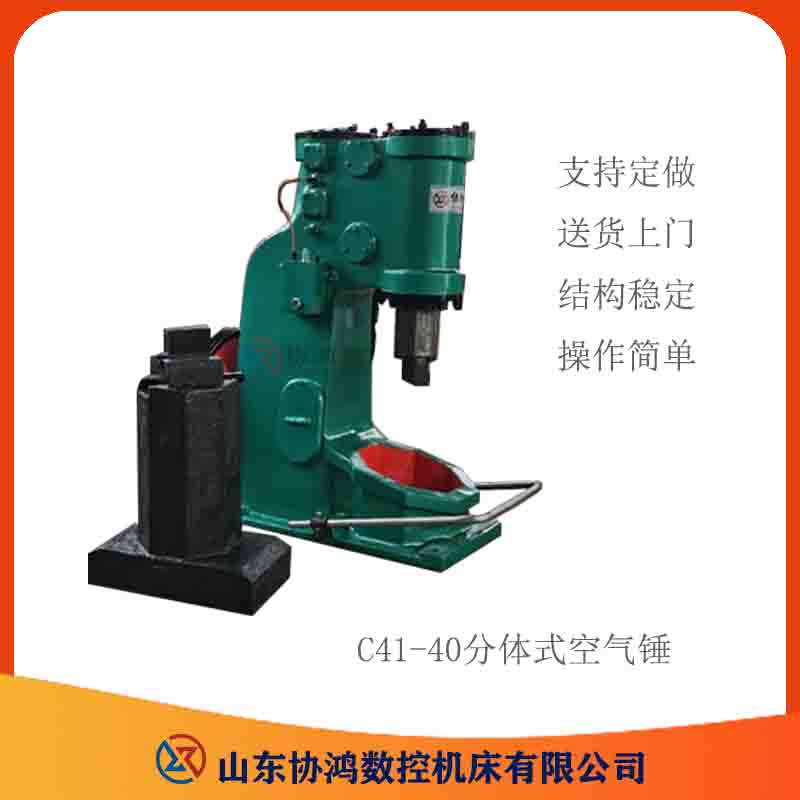

Model: C41-40kg

Part Weight (kg): 40

Strike Capability (J): 53

Strike Count (min): 245

Distance from centerline of hammer shaft to hammer body (mm): 235

Forged square steel side length (mm): 52*52

Forging Round Steel Edge Length (mm): Ø65

Motor Model: Y132M1-6

Motor Power (kw): 4

Main Engine Weight (kg): 1318

Machining Base Weight (kg): 420

Dimensions (mm): 1080*600*1439
