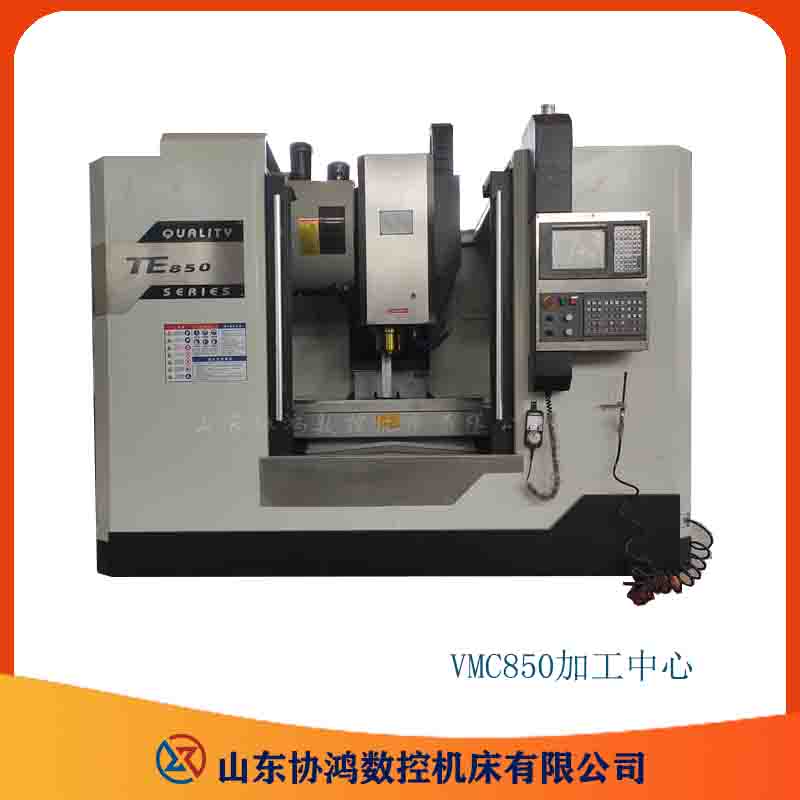

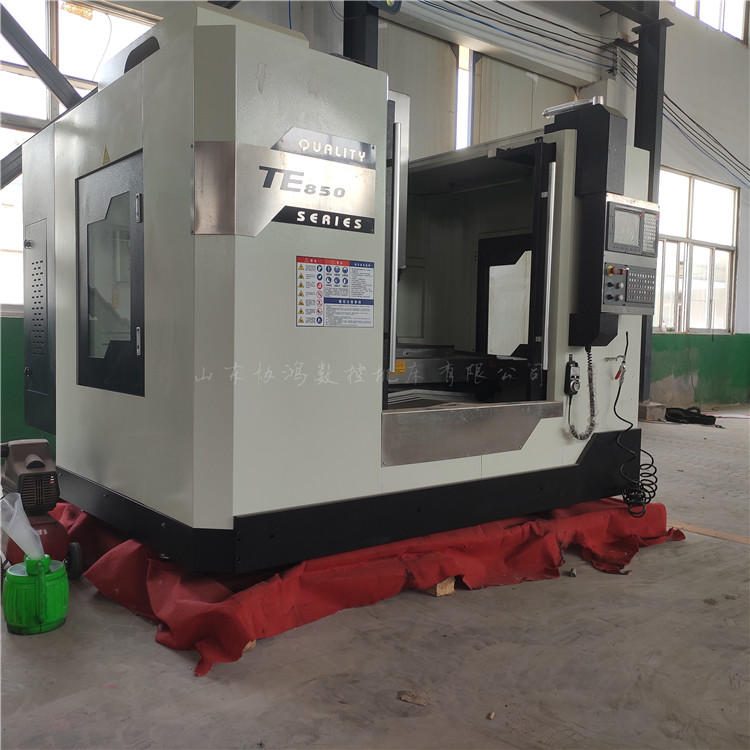

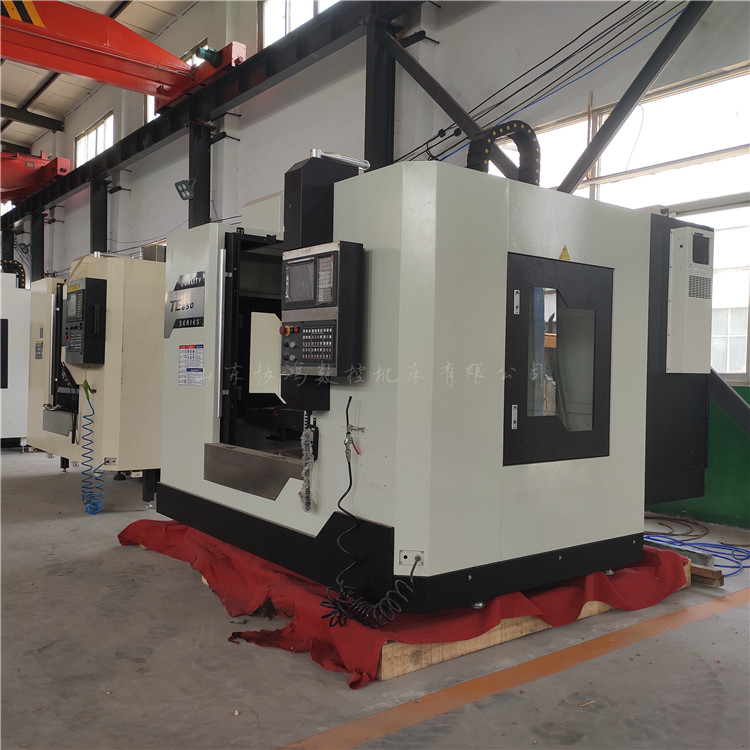

This product is a vertical CNC machining center with semi-closed-loop control for X, Y, and Z axes, featuring high load capacity on rigid guideways, wide span, and high precision. Its structure and dimensions are compact and reasonable. The spindle is driven by a servo motor via a synchronous belt. It can accommodate various complex parts such as disks, plates, housings, cams, molds, etc., in a single setup. It is capable of performing a variety of operations including drilling, milling, boring, reaming, tapping, and rigid tapping. Suitable for the production of multi-type, small and medium-sized batch products, it meets the requirements for processing complex and high-precision parts. It can be equipped with a fourth rotating axis to accommodate special parts.
.jpg)
Technical Specifications VMC850
Workbench Dimensions: mm 1000x500
Workbench Load Capacity: 600 kg
Three-axis travel X/Y/Z mm 800*500*500
Center to pillar guide rail distance: mm 632
Spindle face to table distance: 110-660 mm
Feed rate X/Y/Z: mm/min 10000
XYZ Quick Speed 32 m/min
Spindle Speed: 8000 rpm
Spindle Chuck BT40
Main shaft motor power: 11 kW
XYZ Motor Mounting Type - Direct Mount
XYZ linear guide way
Workbench T-slot 5-18-100
Positioning Accuracy: mm ±0.005 (up to 300mm)
Repeatability Accuracy ±0.003
Tool Magazine Type Arm
Tool Magazine Capacity: Arm 24
Cutting Tool Weight: 8 kg
Blade Length: 250mm
Capacity KVA 11
Machine Tool Dimensions: 2880 mmx2450x2700
Machine Tool Weight: 5,000 kg
Serial Number Product Name Manufacturer Origin
Numerical Control System Controllers - FANUC, Matsuura, Siemens, Kinetec, Mitsubishi - Domestic, Imported
Spindle DanQuan Taiwan
3 Connector Port Wekomm German
4 Electrical Components Delixi Domestic
5 Contactors Schneider France
Automatic Lubrication System Valley Japan
7 Simple Protection Crownway Domestic
8 Tool Magazine Okuma Taiwan
9 Precision Locking Nuts YX Taiwan
Bearings NSK, FAG Japan, Germany
11 Tool Magazines 冈田 Taiwan
