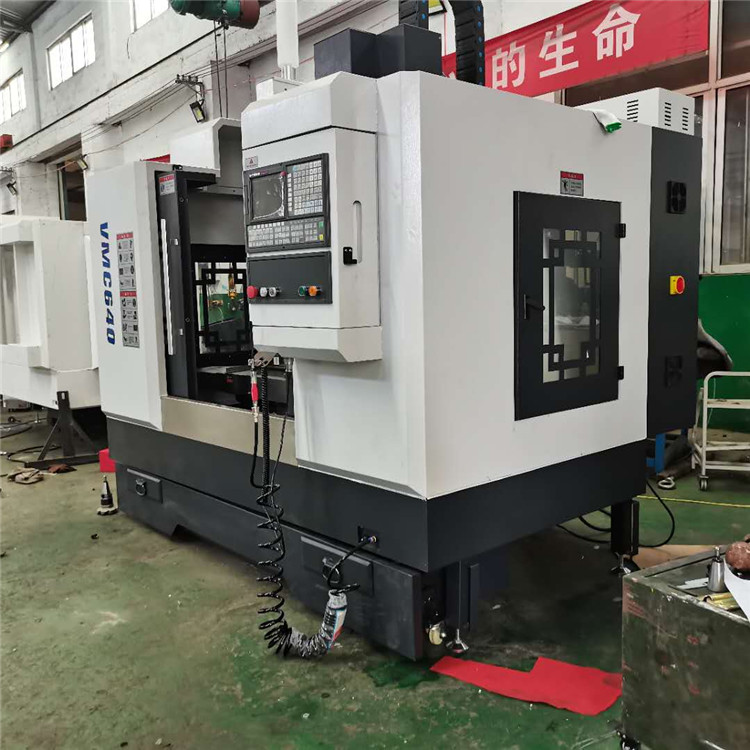

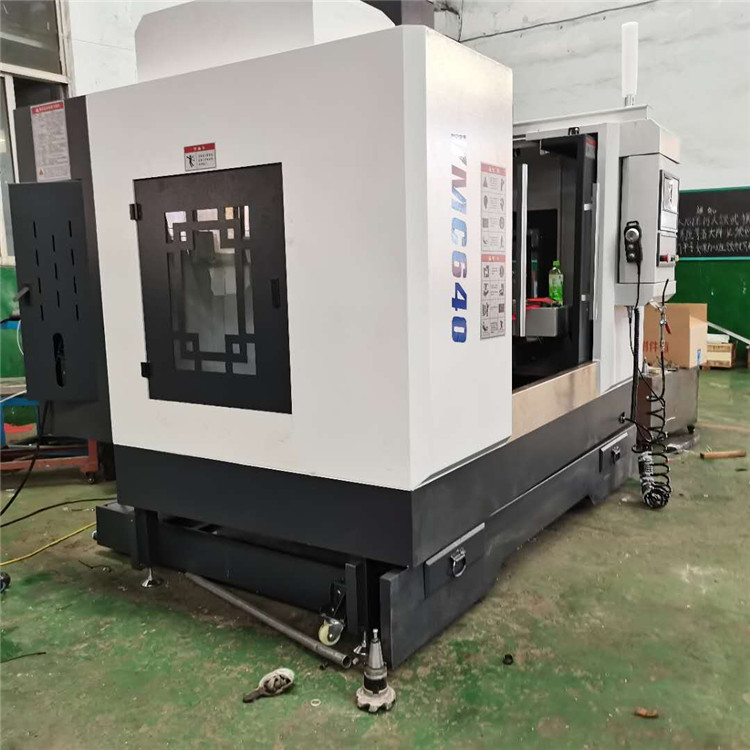

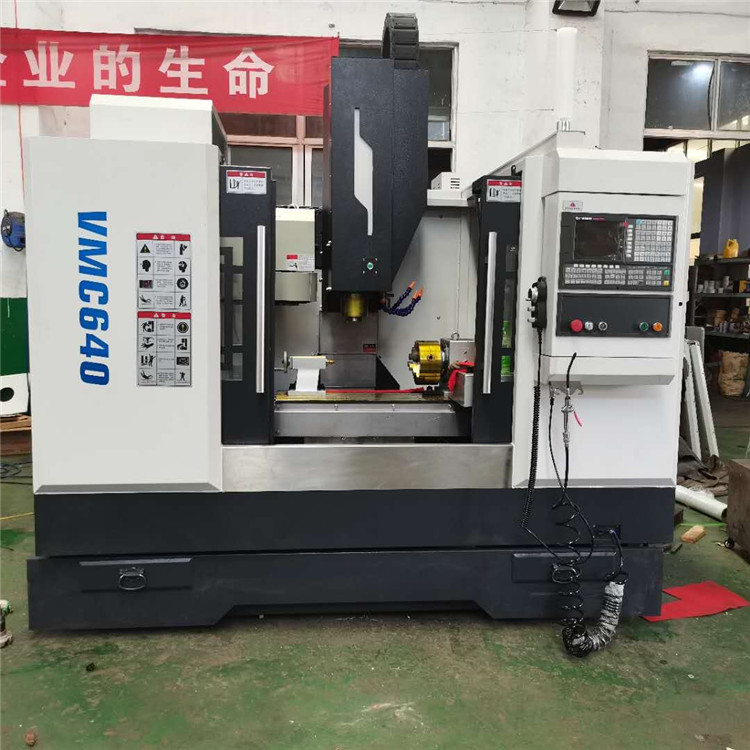

Model VMC640

Workbench Size: 800mmx300

Travel of X-axis mm 600

Y-axis travel mm 360

Z-axis Travel mm 450

Workbench Load Capacity: 300 kg

T-slot (quantity-width-gap) 3-16x80

Spindle speed: rpm 8000 (Optional: 10,000)

Spindle Taper mm BT40

Main Motor Power: 5.5 kW

X/Y/Z Axis Rapid Traverse Speed m/min 24/24/20 (Optional: 48/48/36)

Cutting Feed Rate mm/min 1-10000

Track Type

Bearing to column face distance mm 410

Spindle end to worktable surface distance: 100-550 mm

Positioning Accuracy mm ±0.0075

Repeatability accuracy mm ±0.005

Tool magazine 16 Armless/(Optional: Arm 24)

Blade Diameter: φ90 mm

Knife Weight: 8 kg

Machine Tool Weight: 3,000 kg

Dimensions: 1900mmx1700x2100

Standard Configuration:

No Configuration Content

CNC System: KND1000/GSK980MDI

2 Spindle Speed: 8000 rpm

3 Spindle Rotation Method: Belt

4 Spindle Taper: BT40/120

5 600x360x450m

6 Taiwan 16-Sword Hat Knife Inventory

7 Speed: 36/36/36 m/min

8 (1) Cutting Coolant System (2) Automatic Lubrication System (3) Chip Blowing Device (4) Explosion-Proof Work Lights (5) Tri-color Warning Lights (6) Leveling Bolts and Washers (7) Electrical Box Radiators (8) Three-Axis Screw Pre-tensioning Device (9) Program Storage (10) RS232 Interface (11) Machine Internal Cleaning Device: Air Gun (12) Manual Pulse Generator: Handwheel (13) Transformer (14) Three-Axis Extendable Protective Cover (15) External Protective Sheet Metal (16) Rigid Tapping (17) Precision Inspection Certificate (18) Electrical Instructions (19) User Manual (20) Program Operation Manual
