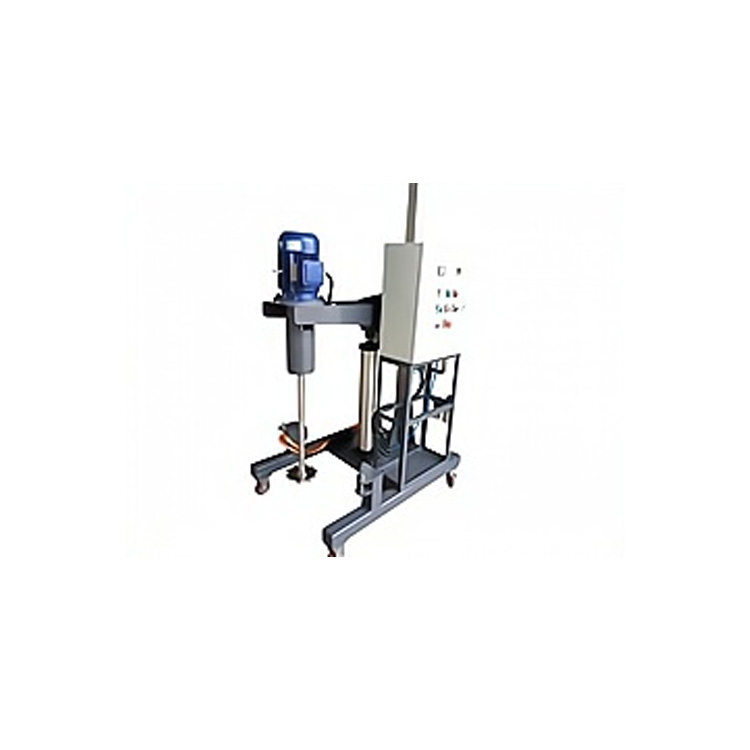

Equipment Introduction:
By the high-speed rotation of the dispersing disk, it generates intense shearing impact and friction between the material and the dispersing disk, achieving rapid dispersion, emulsification, dissolution, and uniform mixing; particularly suitable for the process of preparing solid-liquid dispersion slurry by uniformly dispersing powder in liquids.
This equipment, powered by a cylinder as an actuator, features an air control valve to control the disperser's rise and fall. It is environmentally friendly with no pollution, making it an ideal device for small batch production. The equipment is a pilot product and is widely used in factories, research institutions, and colleges for small batch production.
Common Processes:
Dispersed: Paste for preparing solid-liquid dispersion systems, consisting of insoluble solid powder dispersed in a liquid
Solubility: Solutions prepared by dissolving solid or liquid substances in another liquid
Emulsification: The process of preparing an emulsion from two immiscible liquids
Mixed: A dispersion system is uniformly mixed with another dispersion system to prepare a new material.
Application Products:
Paints, inks, dyes, pigments, emulsions, resins, adhesives, agricultural chemicals, food, cosmetics, batteries, nanomodified coatings, biodiesel, coating slurries, extrusion slurries, moldable slurries, textile auxiliaries, printing slurries, etc.
Component Parts:
Driving motor, working section, control system, pneumatic components, brackets, and other auxiliary parts
Optional Features:
Bottle Capacity: 10L-500L
Power Range: 0.75KW - 11KW
Power Source: 220/230/240/380/400/415/440/480V; 50/60Hz; 3P
Motor Types: Standard, Explosion-proof, Variable Frequency
Energy Efficiency Grade: GB2 (IE3), GB3 (IE2)
Protection Ratings: IP54, IP55, IP65
Speed Control Method: Variable Frequency Speed Control
Lifting Type: Pneumatic Lifting
Dispersal Plate: Flat toothed plate, double-layer dispersal plate, special double-layer dispersal plate, other customized types
Jar Lid: Standard Latching Lid, Sealable Vacuum Lid, No Lid
Container Fastening: Manual Fastening
Material: 304, 316L, 2205
Operation Panel: Standard Button Cabinet, Intrinsically Safe Explosion-Proof Button Cabinet, Flameproof Explosion-Proof Button Cabinet, Standard Touch Screen, Explosion-Proof Touch Screen
Electrical Control: Relay Control, PLC Control, Vector Control, Temperature and Pressure Detection, Actuator Closed-loop Control
Typical Parameters:
Model | Power （kw） | RPM (Revolutions Per Minute) （rpm） | Spreader Disc Diameter （mm） | Linear Velocity （m/s） | Can Volume （L） | Rise and fall stroke （mm） |
MFS-0.75-A | 0.75 | 1445 | 80、100 | 6.0、7.6 | 10 | 500 |
MFS-1.1-A | 1.1 | 1445 | 100、120 | 7.6、9.1 | 20 | 500 |
MFS-2.2-A | 2.2 | 1445 | 150 | 11.3 | 50 | 600 |
MFS-3-A | 3 | 1450 | 180 | 13.7 | 100 | 600 |
MFS-4-A | 4 | 1450 | 200 | 15.2 | 200 | 800 |
MFS-7.5-A | 7.5 | 1455 | 250 | 19.0 | 400 | 900 |
MFS-11-A | 11 | 1460 | 300 | 22.9 | 500 | 900 |
Note:
The typical parameters mentioned above are based on a solid content of less than 30%, density less than 1.3g/cm³, and a full load material viscosity of less than 1000cp.
Materials with viscosity exceeding 10,000 cp are recommended to switch to the medium to high viscosity material preparation equipment selection page.
You can specify your required processing volume, equipment type, size requirements, or the characteristics of the material you need processed, along with the process details. Mico's sales engineers will provide a satisfactory solution for you.
Key Features:
1. Attractive appearance, exquisite craftsmanship, imposing and generous, with high visual appeal.
2. Equipment features a compact and rational structure; easy installation, operation, and maintenance; stable performance, and is safe and reliable.
High-quality raw materials, robust and durable.
4. Easy disassembly and cleaning for the spreader disk.
5. Variable-frequency speed control, low energy consumption; recommend selecting imported brand heavy-duty configuration.
6. Equipped with a bucket clamp, it can quickly secure the mixing drum, preventing any movement during operation that could lead to safety hazards.
7. Designs with bucket lids are available to reduce solvent evaporation, minimize material loss, and conserve environmental resources; achieving vacuum degassing and dehydration of materials.
8. Automatic control and an automatic feedback system for temperature and pressure ensure safety.
9. Reduced air entrapment during operation, allowing for rapid dissolution of materials at medium to high speeds, resulting in smaller secondary particles.
10. Compact equipment footprint, equipped with casters and foot brakes for easy positioning and movement.
Highly customizable to accommodate various material characteristics, processing capacities, and requirements such as high temperature and pressure, flammability, explosiveness, intelligence, and digitalization.
12. Strong production continuity, capable of running for long periods of 24 hours.
