Yantai Zhiming Brand New Equipment Type: ZM-LM-25Type Blueberry Sorting Machine

Sorting speed: 150 kg/Hour

Sorting Grade:4Various grades (diameter sizes ranging from 9)-20mmAvailable for customization; standard market sizes generally apply.12、15、18mm(And above)

Rated Power: 50W

Power Supply:220V(Configure power supply according to customer requirements)

Sorting Error: Less than0.003%Customer Post-Use Statistics

Dimensions: 2.85*1.0*0.92Rice

Weight: 108 KG

Perfect for blueberry and cranberry diameter sizing and hole-picking, the sorting process does not damage the fruit powder. The blueberry sorting machine is currently in high demand and hot selling.

Select blueberries with professional blueberry sorting equipment, such as blueberry sorter machines. Only by using professional blueberry sorting machines can the fruit be sorted without damaging the powder.

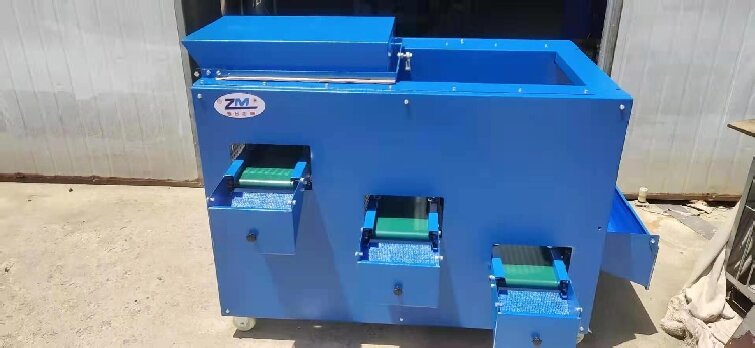

New Blueberry Sorting Machine

Blueberry diameter sorting machine, blueberry diameter grading machine, and blueberry selection machine utilize the varying diameter sizes of blueberries. They sort the berries using sieve-hole roller drums. The sorting process is as follows:

In the upper fruit area, blueberries are conveyed using flexible conveyer belts, ensuring no damage to the fruit's skin and powder.

Sorting area utilizes a sieve roller with apertures for streamlined rotation sorting. Blueberries are sorted from small to large. When blueberries are conveyed to the sorting area, those smaller than the diameter of the roller sieve aperture fall directly into the first-grade fruit collection area and are then transported to the packaging station by the conveyor belt. Larger fruits continue to be conveyed down the belt to the next sieve aperture area, with a similar principle. This process continues to sort into four different grades. Generally, based on market sorting conditions, the blueberries are sorted by size.12、15、18mmAvailable for customization according to customer requirements.

Below the fruit zone, a parallel belt buffering system is used to reduce the vertical drop height of blueberries after sorting, minimizing mechanical injuries during the fall and protecting the fruit powder on the blueberry skin from damage.

Packaging area, with the option to add an automatic packing baffle device to reduce the size of blueberry exports, and an additional conveyor belt for each grade below.2A single funnel-shaped exit, with a tray for small plastic boxes installed as well. Blueberries sorted can be directly packed into the small boxes. The sorting and immediate boxing process of blueberries ensure a complete sorting line, avoiding any additional handling and potential bruising to the fruit.

The blueberry sorter uses physical vibration to sort blueberries by size, grading them from small to large. It has been field-verified by major corporations (blueberry companies) to protect the fruit powder during the sorting process. For instance, in sorting a batch of blueberries, the smaller diameter ones are allowed to fall through the sieve holes first, while the larger ones continue to move forward on the conveyor belt to the next level, suitable for the sieve holes of the next level, and so on. The larger ones...3Fourth-grade fruit area, outside the standard tiers.
