Yantai Zhiming Brand New Equipment Type: ZM-LM-25Type Blueberry Sorting Machine

Sorting speed: 150 kg/hour

Sorting Grade:4A grade (diameter size of 9)-20mmCustomizable to fit, standard market sizes generally available.12、15、18mm(And above)

Rated Power: 50W

Power Supply:220VCustomizable power configurations to suit customer requirements.

Sort Error: Less than0.003%(Statistics after customer usage)

Dimensions: 2.85*1.0*0.92Rice

Weight: 108 KG

Blueberry and cranberry diameter sizing, hole-punch sorting, non-damaging sorting process for the fruit powder. Blueberry selection machines are currently hot-selling.

Select blueberries using professional blueberry sorting equipment, such as blueberry sorter machines. Only with professional blueberry sorters can you ensure the sorting process does not damage the fruit powder.

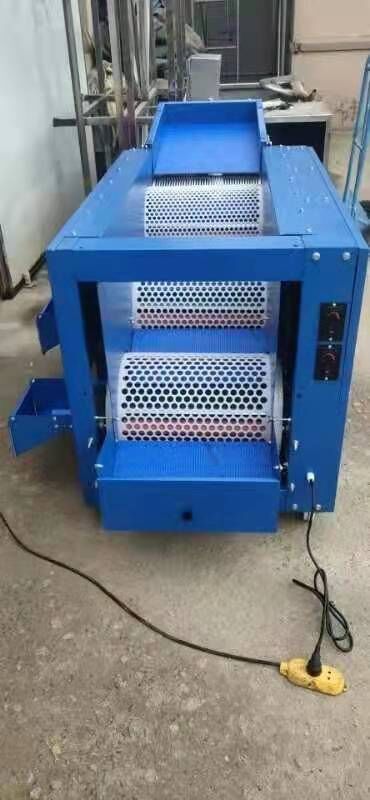

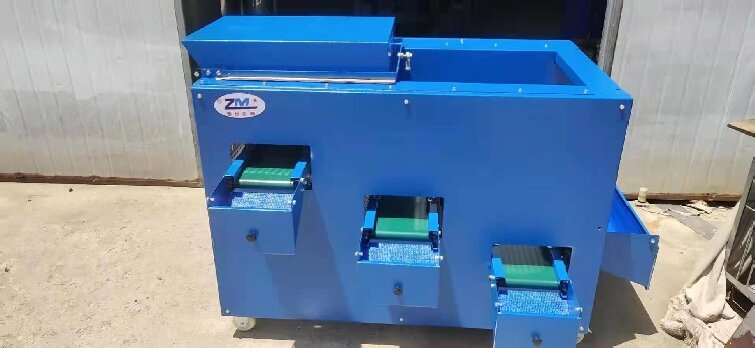

New Blueberry Sorting Machine

Blueberry diameter sorter, blueberry diameter grading machine, blueberry selection machine sorts blueberries based on their varying diameter sizes using sieve-hole drum sorting. The sorting process is as follows:

In the upper fruit area, blueberries are conveyed using flexible conveyors to prevent damage to the fruit's skin and powder.

Sorting area uses sieve roller holes for shaking separation. Blueberries are sorted from small to large. When blueberries are transported to the sorting area, those smaller than the diameter of the roller sieve holes fall directly into the top-grade fruit collection area and are directly conveyed to the packaging with a conveyor belt. Larger fruits continue to be transported to the next sieve hole area on the belt, following a similar principle. This process sorts out four different grades in total. Generally, based on market sorting conditions, blueberries are sorted by size.12、15、18mmAvailable for customization according to customer requirements.

In the downstream area, a parallel belt cushioning device is used to reduce the vertical drop height of blueberries after sorting, minimizing mechanical injuries during the fall and protecting the fruit powder on the blueberry skin from damage.

Packaging area, optional automatic packaging barrier device can be added to reduce the size of blueberry exports, an additional fruit belt is installed under each grade.2A single, individual funnel-shaped outlet, along with a plate for holding small plastic boxes. Blueberries sorted can be directly placed into the small boxes. The sorting and immediate boxing process of the blueberries create a complete sorting line, avoiding any additional handling that could cause the blueberries to be bruised further.

The blueberry separator utilizes a physical streamline drum rotation to sort blueberries by diameter size, grading them from small to large. It has been field-verified by large enterprises (blueberry companies) in protecting the blueberry powder, ensuring the sorting process does not damage the powder. For instance, when sorting a pile of blueberries, first, the smaller diameters are allowed to pass through a hole. The larger diameters then move forward on the conveyor belt to the next level, suitable for the next size of sieve holes, and so on. The larger ones are...3Area for fruits below the fourth grade outside the standard levels; the lower conveyor belt is equipped with gates for direct boxing, preventing injury to fruit powder from manual handling. Electronic weighing scales can be placed in the fruit receiving area for weighing and boxing, saving labor. Blueberry sorting can be supplemented with necessary stages to integrate a complete blueberry sorting and packaging line.

Blueberries are nutritious, ensuring high accuracy during sorting while also protecting the blueberry powder!
