A monitoring tower is a structure equipped withHigh-positioned surveillance equipment with signal transmission capabilitiesThe towering structure is widely used in security surveillance, traffic management, environmental monitoring, and other fields. By elevating the installation height of monitoring equipment, it achieves comprehensive coverage and real-time monitoring of large areas without blind spots, making it an important infrastructure in modern security systems.

I. Core Features

1. Expand surveillance scopeBy elevating camera and sensor equipment, avoiding obstructions such as trees and buildings, comprehensive monitoring is achieved over an area of 1-5 kilometers in radius (depending on height and equipment specifications). Particularly suitable for open areas like squares, parks, and border lines.
2. Stable equipment supportTo provide a stable installation platform for devices such as surveillance cameras, infrared detectors, and microwave radars, avoiding interference from ground vibrations and human contact to ensure the stability of monitoring images and data.
3. Signal Transmission RelayCertain monitoring towers are equipped with transmitters and receivers, serving as relay nodes for monitoring data. This addresses the issue of signal transmission for monitoring equipment in remote areas, ensuring real-time data transmission back to the control center.
4. Auxiliary Security and Alarm WarningWith intelligent monitoring systems (such as motion detection and abnormal behavior recognition), it can quickly capture intrusions and boundary violations. Some towers are also equipped with audio-visual alarm devices, achieving an integrated "monitoring + early warning" system.

Section 2: Main Types

Based on application scenarios and functional focus, monitoring towers are mainly categorized into the following types:

• Security Surveillance TowerUsed for safety protection in factory areas, warehouses, and large communities, typically ranging from 8 to 20 meters in height. Often equipped with high-definition cameras and infrared night vision equipment, meeting the need for continuous 24/7 surveillance.
• Traffic Monitoring TowerEstablished along highways, expressways, ports, and docks, these are positioned at heights of 10-30 meters. In addition to standard surveillance, some are equipped with traffic flow counters and speed radar to assist in traffic management.
• Border / Coastal Surveillance TowersFor security patrols along border and coastal lines, these structures stand at 20-40 meters tall, offering robust construction to withstand strong winds and heavy rain. Often paired with long-range high-definition cameras and thermal imaging devices, they ensure precise identification of personnel, vehicles, and vessels.
• Environmental Monitoring TowerCored around data collection, these towers stand at heights of 5-15 meters. In addition to monitoring video, they are equipped with PM2.5 sensors, noise monitors, temperature and humidity sensors, etc., for real-time environmental quality monitoring in industrial parks and factories.

III. Structural Features

1. Material SelectionPrimarily steel structural, including angle steel truss structures and steel pipe structures, featuring high strength, low weight, and easy installation; some small monitoring towers (such as those within parks) will use aluminum alloy materials to further reduce weight and enhance corrosion resistance.

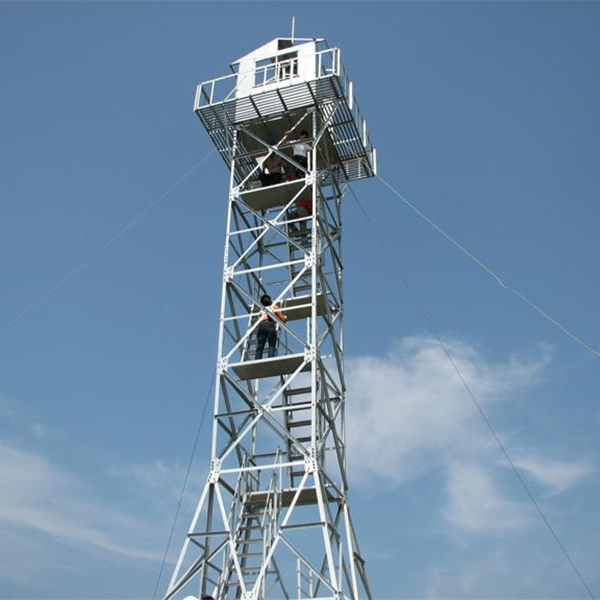

2. Structural DesignMostly four-column or single-tube frame structure, with platforms for equipment installation and maintenance passages reserved between frames; the top of the tower is equipped with a lightning rod, the bottom with a maintenance door, and some tall towers are fitted with simple ladders or hoisting devices for convenient equipment maintenance.
3. Protective TreatmentOutdoor surveillance towers require corrosion protection treatments (such as hot-dip galvanizing, fluorocarbon coating) to extend their service life. In coastal and industrial areas with stronger corrosive environments, higher standard corrosion protection processes are employed to resist salt mist and industrial waste gas erosion.

4. Design and Construction Considerations

1. Location Selection PrinciplesSelect locations with unobstructed views (such as high points of the site or edge zones) to ensure monitoring range. At the same time, avoid interference sources like high-voltage lines and communication base stations to prevent affecting the device signal.
2. Highly matchedBased on the monitored area size, determine the height: for small areas (such as factory zones), select 8-15 meters; for large areas (such as border lines), 20-40 meters are required to ensure the device's field of view covers the target area.
3. Safety StandardsThe structure must meet wind and seismic resistance standards (designed according to local climate and geological conditions); protective railings are set around the tower, and safety locks are installed on the climbing ladder to prevent unauthorized personnel from climbing, ensuring safe use.

The monitoring tower, with its core advantage of "high positioning installation + stable support," addresses the issues of "limited field of view and easy interference" in ground monitoring. It serves as both the "high-altitude eyes" for security surveillance and a "repeater station" for data transmission, providing a fundamental guarantee for intelligent monitoring in various scenarios.
