Crushed Grating

Product Description:

The FG type drum grate crusher is a new wastewater treatment equipment developed for handling solid waste mixed in the sewers. It is capable of crushing fabric and wood fragments mixed in the sewers.

Solid materials such as sheets and empty bottles are intercepted by the grate and sent to the crusher for粉碎, while water flows through the grate to prevent clogging of the sewerage treatment equipment, ensuring proper wastewater treatment.

The equipment operates normally. This unit is primarily suitable for wastewater treatment plants and transfer pump stations.

Items that this machine can crush include: rags, glass, paper products, wood products, hygiene products, empty cans, waste, rubber products, ropes, hoses, leather products, plastic...

Materials and products.

Product Structure

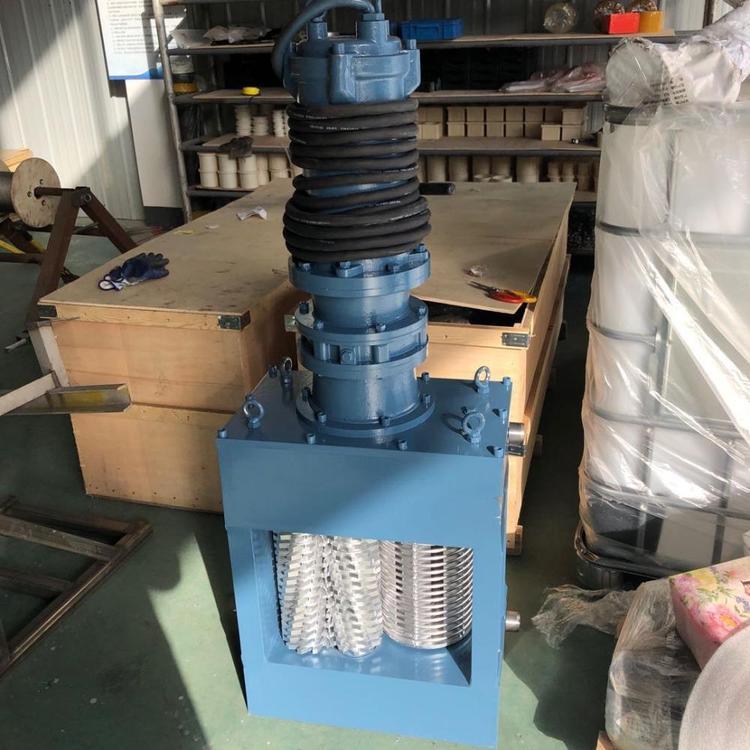

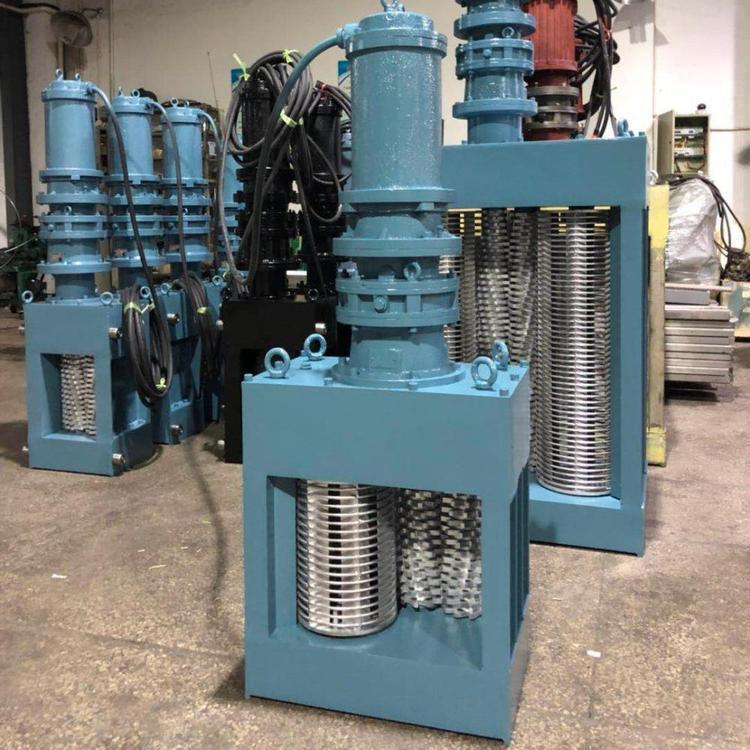

The machine is primarily composed of components such as drum grating screens, milling cutters, washers, spindle, bearings, mechanical seals, machine frame, reducer, motor, and electrical control box.

Under the drive of the driving parts, the teeth of the drum grate perform circular motion, intercepting debris in the water through the circular bars and conveying it to the crusher, while the water flows through the grate. Crushing

Mechanical drive components rotate the driving shaft, which in turn, via precise gears, drives the driven shaft to rotate. This causes the milling cutters fixed to both shafts to rotate in opposite directions, while the solid material...

Chewed and crushed.

Product Features

Crushing in water not only protects the water treatment equipment but also prevents odor release, safeguarding the environment.

Excellent breakage performance, with overload protection function, safe and reliable operation, and automatic control capability.

3 Rake-style debris removal to prevent grid blockage.

Installation and maintenance are simple.

5 Sngle and double drum design, with high water flow rate.

6 Professional custom-designed full-sealed system, suitable for long-term use in harsh sewage.

7 Multi-motor design, effectively prevents drum overload damage, enhancing system reliability.
