Diving Propulsion Device

LanhengBrandDive Propulsion VehicleIs the introductionGermanySubmersible motor with sealing technology assembled. After years of practical exploration, due to its innovation in form, structure, and testing methods, the Blue Constant...Diving Propulsion DeviceOverall performance has reached the level of similar products internationally.
  QJBTypeSubmersible mixerIt can be divided into two major series: mixed agitation and low-speed plug flow.
  The Mixed Series agitator is suitable for mixing suspended liquid in wastewater treatment plants and industrial processes.
  Low-speed Turbulence Series Mixers are suitable for industrial and urban wastewater treatment plant aeration basins.and oxidation ditches,AAOPoolsA2OPonds, Anaerobic Ponds, Anaerobic PondsIts powerful water flow generates low-tangential flow, which is suitable for creating water currents in the aeration, nitrification, denitrification, and phosphorus removal stages.

Application Scope:

  The blender should be able to operate continuously under the following conditions:
  1Medium temperature not exceeding40°C；
  2MediumPHValue in5~9Interval
  3Liquid density does not exceed1150kg/m3；
  4Prolonged diving operations, with a typical depth not exceeding20m。

Key Points to Note:

  Diving mixerMust be fully submerged in water for work; cannot operate in environments with flammable, explosive, or highly corrosive liquids; steel expansion bolts must be securely fastened according to specifications, and the cables must be tightened and securely fastened after installation..
  Diving Propulsion DeviceDuring selection, when the diameter of the浆叶 exceeds2MWe recommend using a gear box reducer..

Performance Features:

  1Tightly structured, easy to operate and maintain, convenient for installation and maintenance, and long service life.
  2The impeller features an excellent hydraulic design structure with high work efficiency. The swept-back blades have self-cleaning capabilities, preventing debris entanglement and blockage.
  3Combining with an aeration system can significantly reduce energy consumption, increase oxygen content明显, and effectively prevent sedimentation.
  4Motor winding insulation gradeFGrade, Protection Class:IP68Selecting anti-condensation devices for bearings and motors ensures safer operation of the motor.
  5Two mechanical seals; the mechanical seals are made of carbonizedSiliconMaterial has been sealed; rubber material is fluoro rubber.

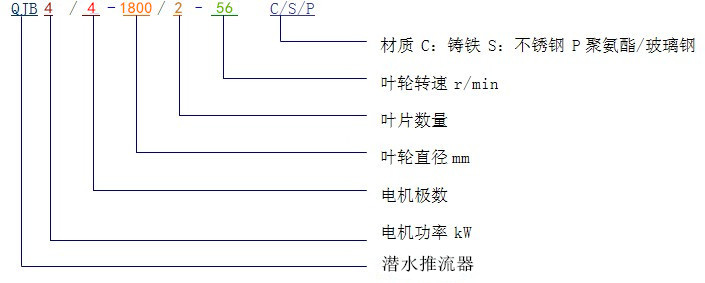

Model Representation Method:

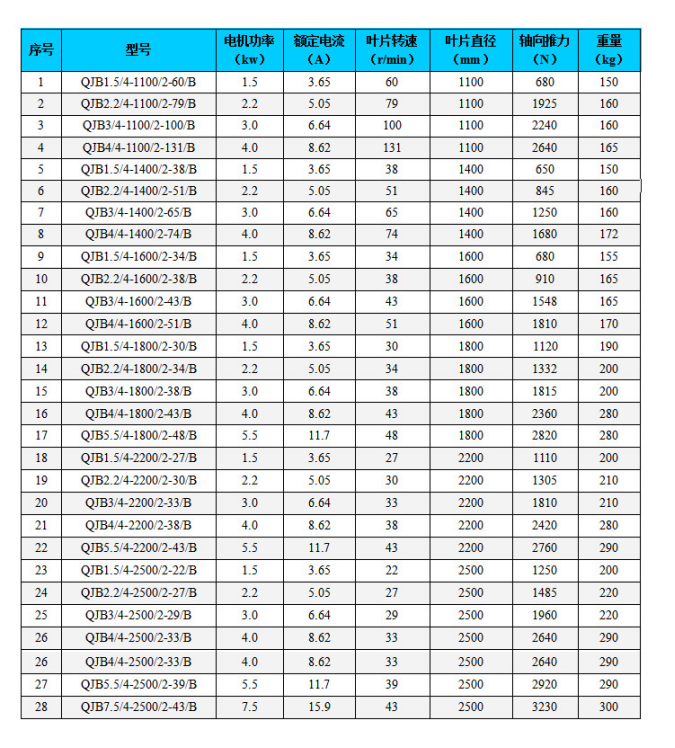

Performance Parameters:

  Mixers at rated voltage380VFrequency:50Hz,Winding insulation gradeFGrade, Protection LevelIP68, Operating SystemⅠUnder the conditions.
