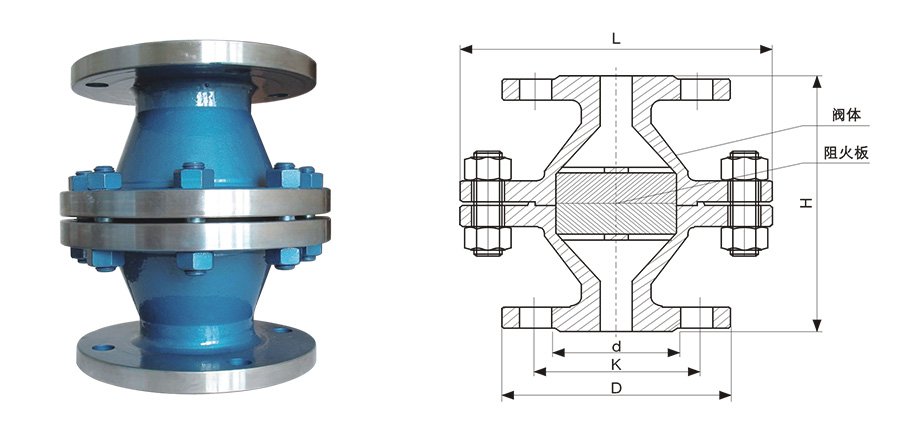

Pipe fire damper

GYW-1 Pipeline Fire Extinguisher, also known as GYW-1 Explosion-Proof Pipeline Fire Extinguisher, is a new type of fire arrester for combustible gas pipelines, representing a new generation of upgraded products.
The GYW-1 flame arrester meets the requirements of GB13347-92 "Flame arrester for petroleum and gas pipelines – Flame arrester performance and test methods." The arrester is structurally sound, with the flame arrester layer made of stainless steel for corrosion resistance and easy cleaning. The housing is made from stainless steel and carbon steel, catering to the needs of various process pipelines.

GYW-1 PipelineFire damperPerformance and Features：
The flame arrester features a rational structure, light weight, corrosion resistance, and meets the explosion suppression requirements, successfully extinguishing fire in 13 subsonic flame tests. It is easy to maintain and install. The flame arrester also meets the burning resistance standards, with no relight after 1 hour of burning test. The core is made of stainless steel, which is resistant to corrosion and easy to clean. The casing has passed hydrostatic testing.
GYW-1 PipeFire damperApplication Scope：
The fire arrester is suitable for pipelines transporting flammable gases, torch series, oil vapor recovery systems, heating furnace fuel gas networks, gas purification and treatment systems, gas analysis systems, and coal mine gas emission systems, as well as for Class A oils, fuels with flash points below 28°C, and kerosene, diesel, and crude benzene with flash points below 60°C.

GYW-1 PipelineFire damperPrimary Uses：
1. Pipeline for conveying flammable gases.
2. Torch System.
3. Vapor Recovery System
4. On the pipeline of the heating furnace fuel gas.
5. Gas Purification and Homogenization System
6. Gas Analysis System.
7. Coal Mine Gas Emission System. Key Performance: The fire arrester has successfully prevented flame passage in 13 consecutive subsonic flame tests.
