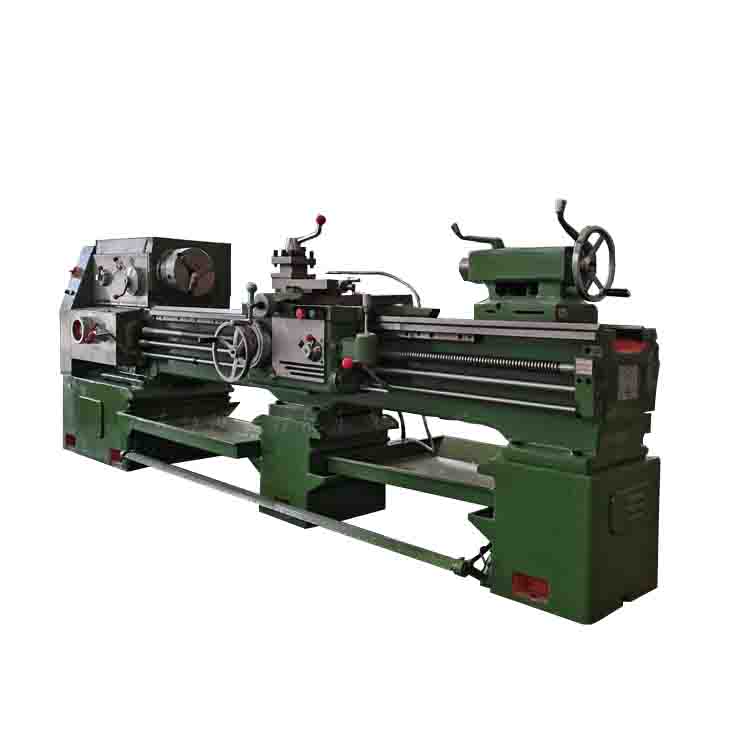

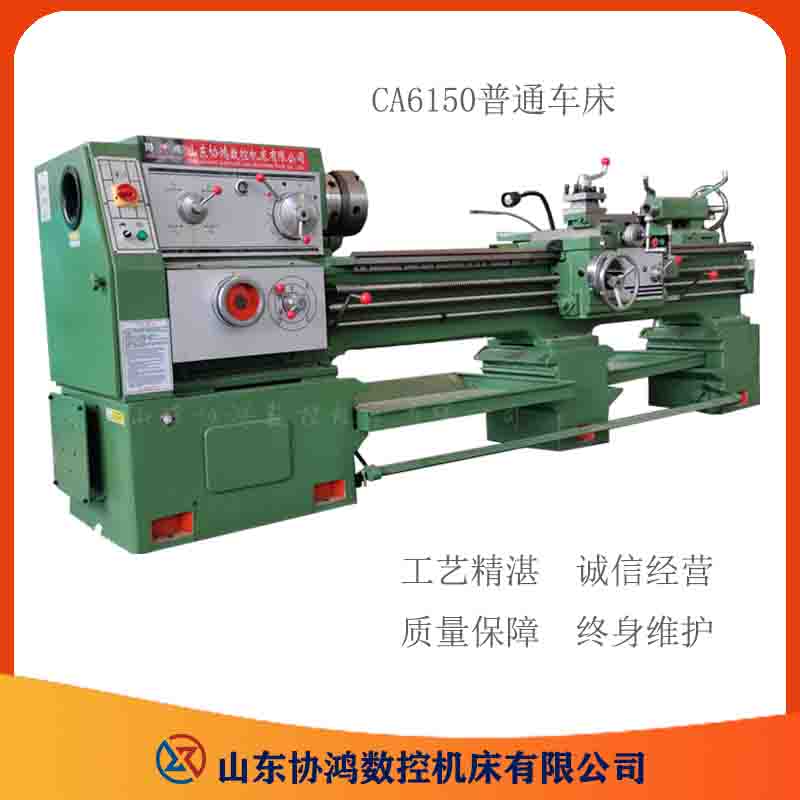

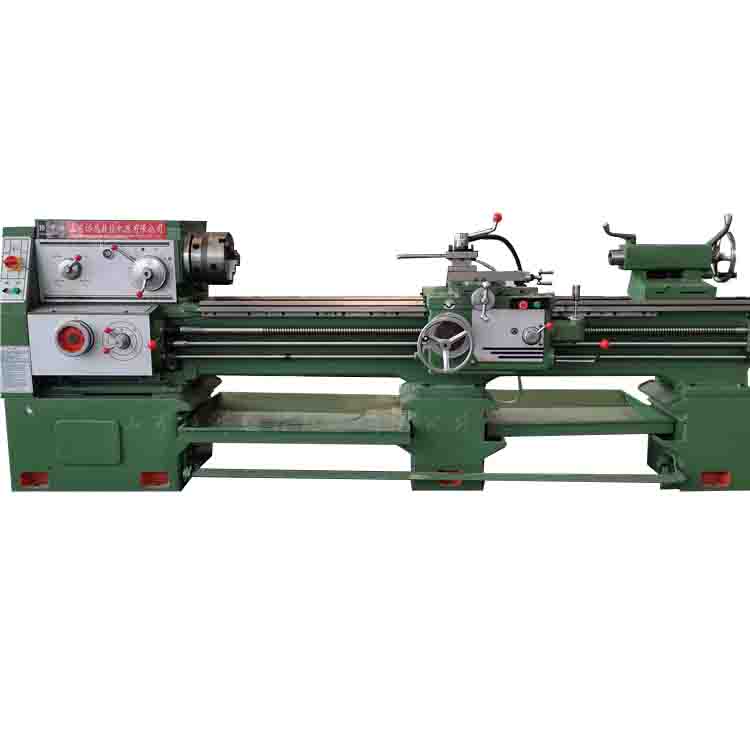

The C61 series lathe is suitable for turning both internal and external cylindrical surfaces, internal conical surfaces, and other rotating surfaces. It can turn various metric, English, module, and pitch diameter threads, and is capable of performing drilling and oil groove pulling tasks.

Structural Features:

The CA series, based on the "A" model, has derived several variant products. B Type: spindle bore diameter 80mm, C Type: spindle bore diameter 104mm.

The CA61 series is a general lathe, and the CA62 series is a saddle lathe. The CA6140/CA6240 lathe models do not have a 105mm bore.

1. The bed is wider than that of a standard lathe, featuring high rigidity. The guide surfaces have been hardened through medium-frequency quenching, ensuring long-lasting wear resistance.

2. Machine tool operation is convenient and centralized, with the sliding plate equipped with a quick movement mechanism. The single-handle design facilitates intuitive operation and is user-friendly.

3. The machine tool structure and transmission rigidity are both average for general lathes, suitable for high-speed cutting. The spindle bore is large, allowing for a full range of accessories to be chosen.

Project Model: CA6140

Swivel diameter on bed: 400 mm

Swivel diameter on blade holder: 210 mm

Part Processing Length: 1000mm

Spindle Bore Diameter: mm 52; 76; 80

Main shaft head types: A6; C8; D8

Bed Rail Width: 400mm

Bed frame rail hardness RC 52

Spindle Speed Range (24) 10-1400 rpm

Feed Rate Range (Standard) mm/r 0.08-1.59

Feed Rate Range (Fine Feed) mm/r 0.028-0.054

Feed Rate Range (Increased Feed) mm/r 1.71-6.33

Metric Thread Range (44 Types) mm 1-192

British Standard Thread Range (20 Types) - TPI 24-2

Modular螺纹Range (39 Types) mm 0.25-48

Machined Pitch Thread Range (37 Types) DP 96-1

Main Motor Power: 7.5 kW

Machine Tool Net Weight: 2,220 kg

Machine tool outline dimensions (Length × Width × Height) mm 2650×1000×1267

Machine Tool Packaging Dimensions (Length x Width x Height) mm 3100×1260×1760
