I. Product Introduction and Application

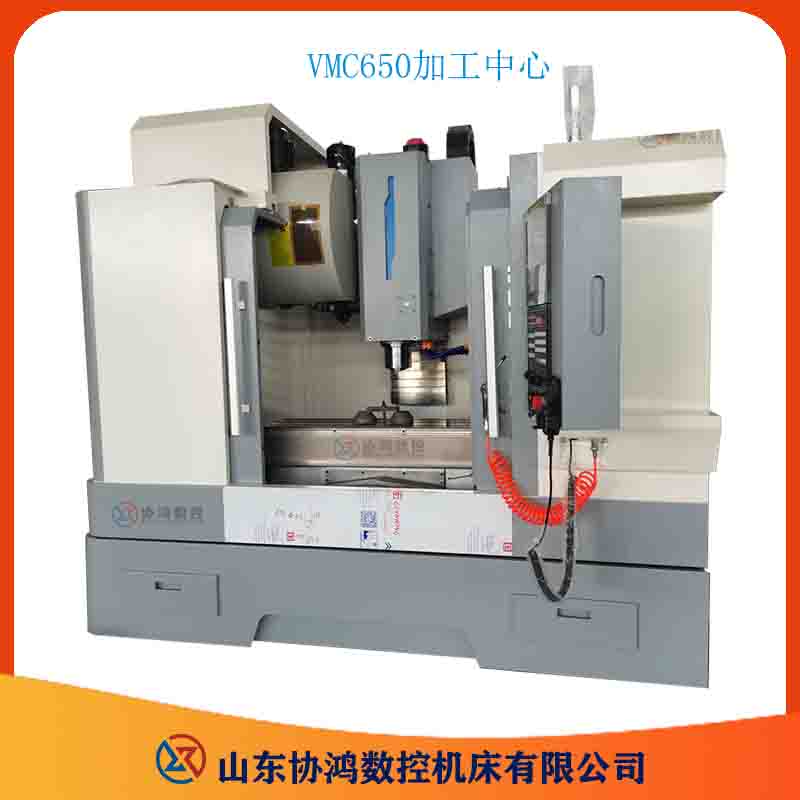

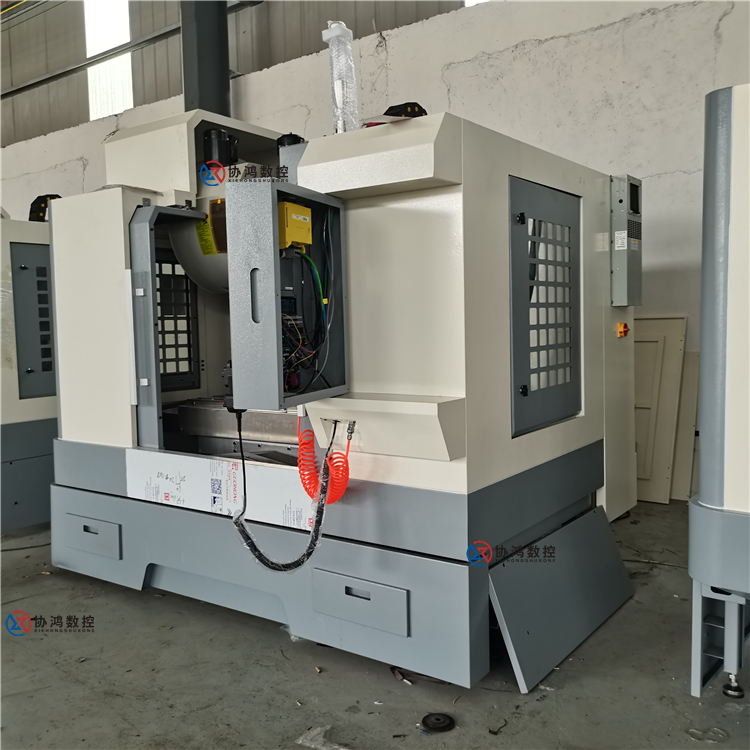

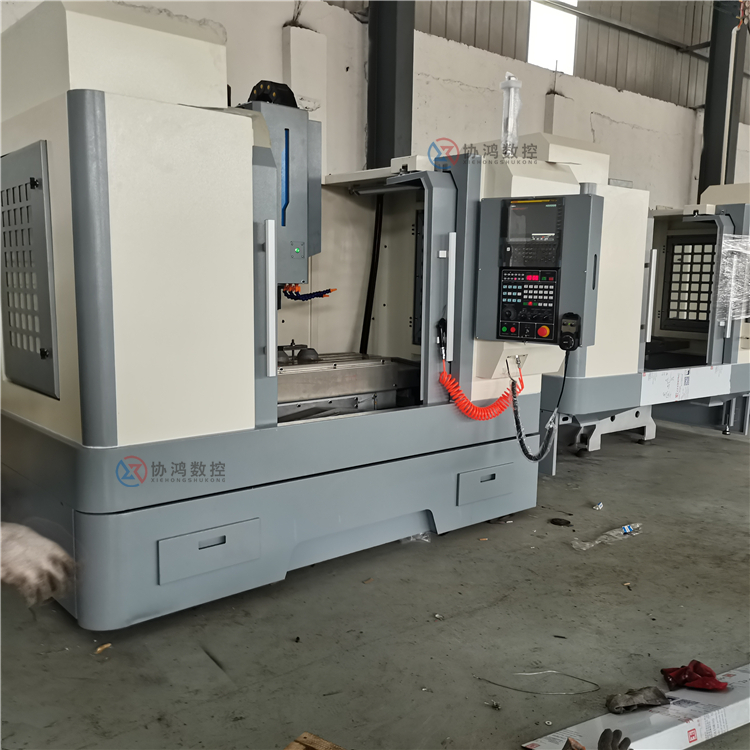

This product is a vertical CNC machining center with direct connection and semi-closed loop control for X, Y, and Z axes. All three axes feature ball screw linear guides, which offer high load capacity, wide span, and high precision. The linear guides for the three axes are 35mm in diameter. The structure and dimensions are compact and reasonable. The spindle is driven by a servo motor via synchronous belts, enabling single setup for various盘类, 板类, 壳体, 凸轮, 模具, and other complex parts. It can perform drilling, milling, boring, reaming, tapping, and rigid tapping processes. Suitable for production of a variety of products in small and medium batches, it meets the requirements for machining complex, high-precision components. An additional rotating axis is available for special part processing needs.

II. Main Structural Features

1. The main base components such as bases, sliding seats, workbenches, columns, and main spindle boxes are made of Y-grade cast iron and feature an enclosed box-like structure. The compact and rational symmetrical rib structure ensures high rigidity and bending vibration resistance of the base components. The A-type bridge-type columns and internal grid-like ribs effectively guarantee rigidity and precision during powerful Z-axis cutting. The base components are cast using resin sand molds and are heat-treated for long-term stable performance of the machine tools.

2. The guide rails for X, Y, and Z axes are all HIWIN brand linear ball guides from Taiwan, featuring fast speed, high rigidity, low friction, low noise, and minimal temperature change. Combined with automatic forced lubrication, they enhance the precision and lifespan of machine tools.

3. The standard configuration of the Z-axis employs a weightless structure for high-speed rapid movement; the Z-axis drive motor is equipped with an electrical power brake feature; (optional additional weighting blocks for balance, ensuring smooth and stable movement of the spindle box)

4. The X, Y, Z axes use high-precision, high-torque internal circulation pre-tensioned ball screw with large lead, ensuring high feeding speed. The driving motor is directly connected to the screw via an elastic coupling, and the feeding servo motor transmits power directly to the high-precision ball screw, eliminating backlash to guarantee the machine tool's positioning accuracy and synchronization.

5. Utilizing a high-speed, high-precision, and high-rigidity spindle unit, it boasts strong axial and radial load-bearing capabilities, with a maximum Z-axis speed of up to 10,000 rpm.

6. The spindle features a central blowing structure, which quickly cleans the spindle cone with high-pressure gas during spindle knife release, ensuring the precision and longevity of the tool holder.

7. The X, Y, Z three-axis guideways and screws are equipped with protective devices, ensuring the cleanliness of the screws and guideways, thereby guaranteeing the transmission precision and service life of the machine tool.

8. The machine tool exterior protection features a full-coverage structural design, offering easy operation, safety, reliability, and an aesthetically pleasing appearance.

9. Utilizes a reliable centralized automatic lubrication system, providing timed and precise intermittent lubrication to various lubrication points on machine tools. The lubrication time can be adjusted according to the working condition.

10. Equipped with a 16-blade magazine (standard configuration) produced by a Taiwan professional manufacturer, the knife change is accurate, quick, and efficient. It has passed over one million operation tests, meeting reliability standards; features a damping structure to reduce shock during movement, ensuring the longevity of the magazine; pneumatic drive for easy operation, and Z shortest path for knife change.

11. Equipped with an oil-water separator, it can separate most of the collected lubricating oil from the coolant, preventing rapid deterioration of the coolant and benefiting environmental protection.

12. The machine tool operating system is designed with ergonomic principles, featuring an independently designed control box that can rotate itself for easy operation.

① Itinerary

X-axis: 650mm

Y-axis: 400mm

Axis Z: 500mm

Spindle face to table face distance: 120-620mm

Center distance from main shaft to guide rail surface of the main column: 492mm

② Workbench

Worktable Surface Size: 400×800mm

Z Large Load Capacity  400kg

T-slot width: 18

Quantity of T-Type Holes: 3

③ Spindle

Conical Specification BT40

Spindle Speed (optional): 8000

Spindle Motor  5.5 Kw

⑤ Quick Displacement

X, Y-axis rapid movement speed: 24,000 mm

Z-axis rapid travel speed: 18,000mm

Cutting Feed Rate: 1-5000 mm/min

⑥ Precision

Positioning Accuracy ±0.01mm

Repeatability Accuracy ±0.005/300mm

2. CNC Control System

The system features comprehensive interlocking, safety protection, and fault diagnosis alarm functions, equipped with RS232 standard communication interfaces and network cables, allowing for program control and storage with computers. It can achieve CNC machining (varies depending on the system).

AC Servo Motor for X/Y/Z Axis (Torque: 10/10/15 N.m)

3. Power Unit

Three-phase AC power: 380V ±10% 50Hz ±10%

Power Capacity: 14 KVA

4. Cooling System

Tank Capacity: 180L

Cooling Pump Power: 530W

Cooling pump flow rate: 30L/min

Rated Head: 20m

5. Gas Source

Pressure Application: 0.6 MPa

6. Machine Tool External Dimensions and Weight

Machine tool exterior dimensions: 2100×2250×2350mm

Machine Tool Approx. Weight: 4000 Kg

Description: Due to variations in configurations, special orders, CNC systems, and continuous product improvements, some technical specifications may be affected. Please verify based on actual conditions when placing an order, or contact our customer service team. Welcome to visit our facility!
