1600°F Small Lift Furnace Custom Model

Rated Voltage: 380V

Rising Rate: ≤1-40℃/min (user-friendly adjustable)

Temperature Control Accuracy: ±1℃

Temperature Control Method: Utilizes intelligent programmable instrument (automatic programmable heating/cooling/maintenance) with PID regulation.

Dual-circuit protection: Over-temperature, over-pressure, over-flow, disconnection, power failure, etc.

Customizable: Available for customization

Product Introduction

Advanced technology high-temperature lifting furnace, independently developed and produced energy-saving, environmentally friendly, and new type electric furnace. The equipment features an aesthetically pleasing and modern design, with an advanced and reasonable structure. It is easy to operate and has a beautiful appearance. The shell is made of cold-rolled steel plate, processed by advanced CNC machine tools. The luxurious and aesthetically pleasing two-color imported epoxy powder electrostatic spraying process ensures it is resistant to high temperatures and corrosion, with long-lasting color retention.

Utilizing heating elements, the double-layer furnace shell is equipped with a forced-air cooling system for rapid temperature reduction. This furnace boasts even temperature distribution, low surface temperatures, fast heating and cooling rates, and energy-saving advantages. The furnace chamber is constructed from imported composite high-temperature fiber materials via CNC processing, featuring strong resistance to thermal shock, excellent corrosion resistance, non-caving, non-crystallization, no slagging, non-polluting, and a long service life. The control system employs microcomputer artificial intelligence adjustment technology, with PID regulation, automatic control, self-tuning functions, multi-step program programming, and the ability to create various heating, holding, and cooling programs. It offers high temperature control accuracy, high energy efficiency, and high stability.

Integrated module with thyristor control and phase-shifting triggering, protection system: featuring independent over-temperature protection, over-pressure, over-flow, leakage, short-circuit, and other protections. High level of automation, with all indicators reaching advanced levels.

This equipment is widely used in universities, research institutions, industrial and mining enterprises, and for experiments and production in various fields such as powder processing, military industry, electronics, metallurgy, pharmaceuticals, ceramics, glass, machinery, new material development, special materials, refractory materials, building materials, chemicals, metal sintering, and metal heat treatment.

Additionally, through our independently developed control software, the electric furnace can be connected to a computer, enabling remote control of a single or multiple furnaces, starting and stopping the furnaces, setting temperature control programs, storing temperature control programs, viewing historical curves, and printing historical curves.

Primary Functions and Features

1. Energy-saving and power-efficient, environmentally friendly and pollution-free (high-purity composite alumina/porcelain crystalline fiber furnace material, lightweight, low heat retention, energy-saving, operating at half power on average)

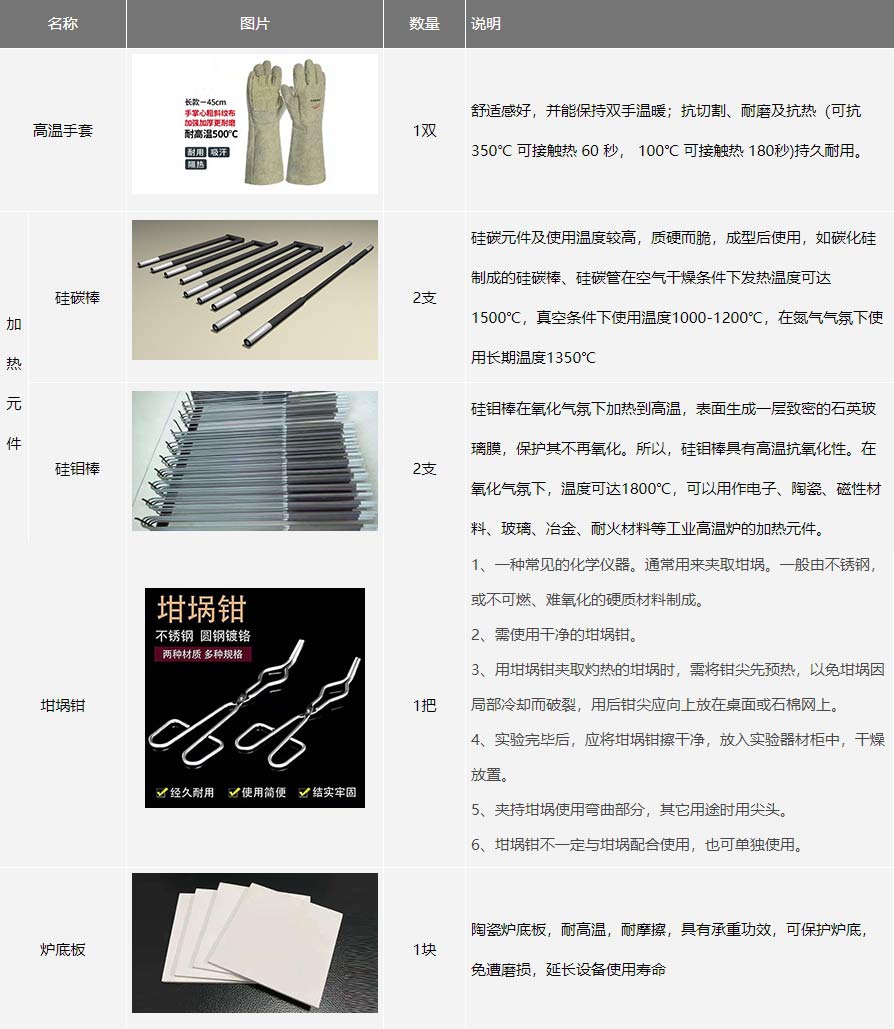

2. Easy replacement with energy saving and time-efficient (heating elements are resistance wire/silicon carbide rod/silicon molybdenum rod, with long service life and easy replacement)

3. Integrated furnace body and control system for convenient and flexible operation, saving space.

4. High temperature control accuracy (top-quality instruments, ±1℃ temperature control precision) with third-party inspection certificate available for the instrument.

5. Excellent even heat distribution, four-sided heating (合理布局, even temperature field, no blind spots in the furnace cavity)

6. Microcomputer program-controlled temperature regulation, adjustable heating rate, automatic operation with no need for human supervision

7. Over-temperature, over-pressure, over-flow, leakage, disconnection, and rod breakage automatic protection and alarm

8. Bottom furnace electric screw jack with smooth lifting and no vibration, convenient for loading and unloading materials.

9. Wide Application Range: Universities, research institutions, industrial and mining enterprises, etc., for powder, military industry, electronics, metallurgy, pharmaceuticals, ceramics, glass, machinery, new material development, special materials, refractory materials, building materials, chemicals, metal sintering, and metal heat treatment for testing and production.

10. Double-shell design with air convection insulation layer

11. Electrostatic powder coating on the shell, with a beautiful and generous two-color matching appearance

12. Excellent reputation, numerous clients

13. Great value for money, comprehensive after-sales service, 1-year warranty, lifetime on-site maintenance

Main Technical Parameters
